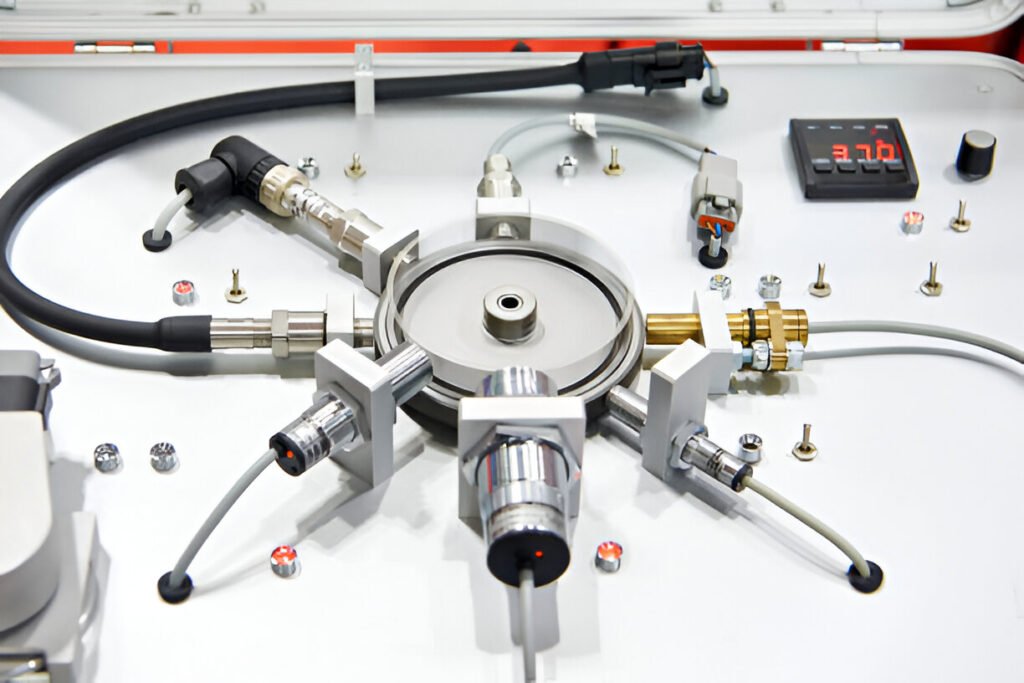

Proximity switch sensor are a critical part of countless automated systems. They detect the presence or absence of objects without physical contact. This ability makes them perfect for harsh industrial environments where wear and tear is a concern.

Two of the most popular types are NPN and PNP proximity sensors. Choosing between these two depends heavily on your system’s requirements.

Why is this choice crucial? Imagine using the wrong sensor: you might get unreliable signals, system faults, or even damage to your control equipment.

This guide will walk you through how to identify NPN vs PNP sensors, understand their working principles, and select the right one based on your application needs—ensuring your automation runs smoothly and efficiently.

---

---

What is NPN?

If you’re new to proximity sensors or just want a quick refresher, let’s start with the basics. An NPN sensor is a type of proximity switch sensor commonly used in industrial environments. So, what does NPN mean?

NPN stands for Negative-Positive-Negative, which describes the transistor output configuration inside the sensor. Here’s how it works:

• When the sensor detects a target, its output line (often labeled OUT) connects to ground (0V).
• This means the output “sinks” current to ground when active.
• The sensor’s output switches low (close to 0V) when activated.

NPN Sensor Wiring and Operation

Here’s a simple wiring diagram for an NPN Inductive Proximity Switch Shielded M18 proximity sensor:

Wire Color	Connection	Role
Brown	Power Supply (+Vcc)	Provide positive voltage (usually +12V to +24V)
Blue	Ground (GND)	Sensor ground reference
Black	Output (OUT)	Signal output, connects to ground when active

Think of it as a gate that closes to ground when it senses something nearby. This configuration is also called a sinking output because it pulls the load current down to ground.

NPN sensors are often described as “open collector” or “open drain,” which means the sensor can pull the signal line low but can’t drive it high.

Common Uses and Advantages

• NPN proximity sensors are popular in Europe and parts of Asia.
• They work well with PLC (Programmable Logic Controller) inputs designed for sinking signals.
• They provide good noise immunity because the sensor switches to ground.
• Compatible with most relay and transistor inputs in industrial control systems.

Did you know? If your control system expects signals connected to ground, an NPN sensor is your go-to. Send us an inquiry, and we can help you pick the right sensor for your system!

---

What is PNP?

Let’s flip the coin. What’s PNP, and why does it seem so similar yet so different?

PNP means Positive-Negative-Positive, describing the opposite internal transistor setup. In simple terms:

• The PNP sensor output line (OUT) connects to the positive voltage supply (+Vcc) when it senses a target.
• This means it “sources” current to the load instead of sinking it to ground.
• The sensor output switches high (close to +Vcc) when active.

PNP Sensor Wiring and Operation

Let’s see how PNP wiring compares:

Wire Color	Connection	Role
Brown	Power Supply (+Vcc)	Provide positive voltage (typically +12V to +24V)
Blue	Ground (GND)	Sensor ground reference
Black	Output (OUT)	Signal output, connects to positive voltage when active

The sensor acts like a switch that connects the output wire to the positive supply voltage—hence it’s called a sourcing output.

Popularity and Uses

• PNP sensors are widely used in North America, but also globally.
• Great choice when your control system or PLC input module expects sourcing inputs.
• They can easily drive inputs that need a positive voltage signal to detect a “high” state.
• Often preferred in applications requiring safety considerations, because faults usually result in a low output which is safer.

Wondering if a PNP sensor suits your setup? Contact us today for customized recommendations and support.

---

How NPN and PNP Proximity Switch Sensor Work

Understanding the core working principle of these Proximity Switch Sensor will clarify their applications.

Feature	NPN Sensor	PNP Sensor
Output Type	Sinking (output connected to ground when active)	Sourcing (output connected to positive voltage when active)
Output Signal Level	Low (0V) on detection	High (+Vcc) on detection
Current Flow Direction	From load to ground	From power supply to load
Compatible PLC input types	Sinking input modules	Sourcing input modules
Typical use regions	Europe, Asia	North America, worldwide

How This Affects Circuit Design

• If your control system expects a high signal for “ON”, a PNP sensor may work better.
• If it expects a signal driven low for “ON”, choose an NPN sensor.
• The wiring and input modules should be compatible to avoid miswiring and signal errors.

Pro tip: Check your PLC or controller manual for input specifications before buying sensors.

---

---

Key Factors to Choose Between NPN and PNP Proximity Sensor

Selecting the right Proximity Switch Sensor type depends on several real-world considerations beyond just technical specs:

1. Compatibility with Control Systems (PLC Input Type)

• Some PLCs only accept sinking (NPN) or sourcing (PNP) input signals.
• Mismatching sensor and PLC input types could cause the PLC not to detect signals correctly.

2. Regional Industry Standards

• Europe and many Asian manufacturers prefer NPN sensors.
• North America largely uses PNP sensors.
• Knowing industry norms helps streamline integration and maintenance.

3. Safety and Fault Protection

• PNP sensors tend to fail “safe” in some designs, as losing positive voltage results in an “off” signal.
• In contrast, NPN sensors pull outputs to ground, which may be interpreted differently by safety systems.

4. Load and Signal Wiring Requirements

• Some sensors better fit mechanical relay inputs or transistor inputs depending on sourcing or sinking logic.
• Wiring simplicity and debugging ease favor matching sensor and load type.

Table: Summary of Considerations

Factor	Prefer NPN Sensor	Prefer PNP Sensor
PLC input module	Sinking (input goes low when active)	Sourcing (input goes high when active)
Regional usage	Europe, Asia	North America
Safety preference	Less common	Fail-safe advantage
Wiring simplicity	Load connected to positive supply	Load connected to ground

Need help with integrating these sensors into your system? Reach out for expert advice and tailored proximity switch sensor solutions.

---

Common Application Scenarios and Sensor Selection Recommendations

Your choice of NPN or PNP proximity switch sensors often depends on the specific application. Here are some typical use cases:

Automated Production Lines

• Use NPN or PNP proximity switch sensor that match the PLC input to reliably count objects, detect presence, or trigger actions.
• For high-speed production, quickly switching sensors with stable signals are crucial.

Robotics and Precision Positioning

• PNP sensors are often favored in robotic arms where sourcing signals align with control electronics.
• Position feedback accuracy can depend on sensor type.

Automotive Industry

• Both NPN and PNP sensors are used depending on regional factory standards.
• Proximity switch sensor monitor doors, engine parts, fluid levels, and actuator positions.

Logistics and Warehousing Automation

• Conveyor belt object detection generally requires sensors compatible with existing control systems.
• NPN or PNP choice must ensure quick signal transmission for efficient sorting.

Smart Home and Building Automation

• Proximity switch sensor for doors, windows, or occupancy detection.
• PNP sensors are popular due to positive voltage output matching low-voltage controllers.

Application	Recommended Sensor Type	Important Notes
Production lines	NPN or PNP based on PLC	Match control system inputs
Robotics	Often PNP	Ensures compatibility with control electronics
Automotive	Varies by region	Follow local standards
Logistics	System dependent	Prioritize signal speed & accuracy
Smart home	PNP preferred	Positive voltage outputs simplify wiring

---

Choosing between NPN and PNP proximity switch sensor doesn’t have to be complicated. It boils down to matching the sensor output type with your control system and application requirements.

Remember:

• Assess your PLC or controller inputs — sourcing or sinking signals?
• Consider your regional industry standards and safety needs.
• Think about wiring simplicity and fault tolerance.

By understanding these factors, you’ll ensure reliable, safe, and efficient operation of your automated systems.
