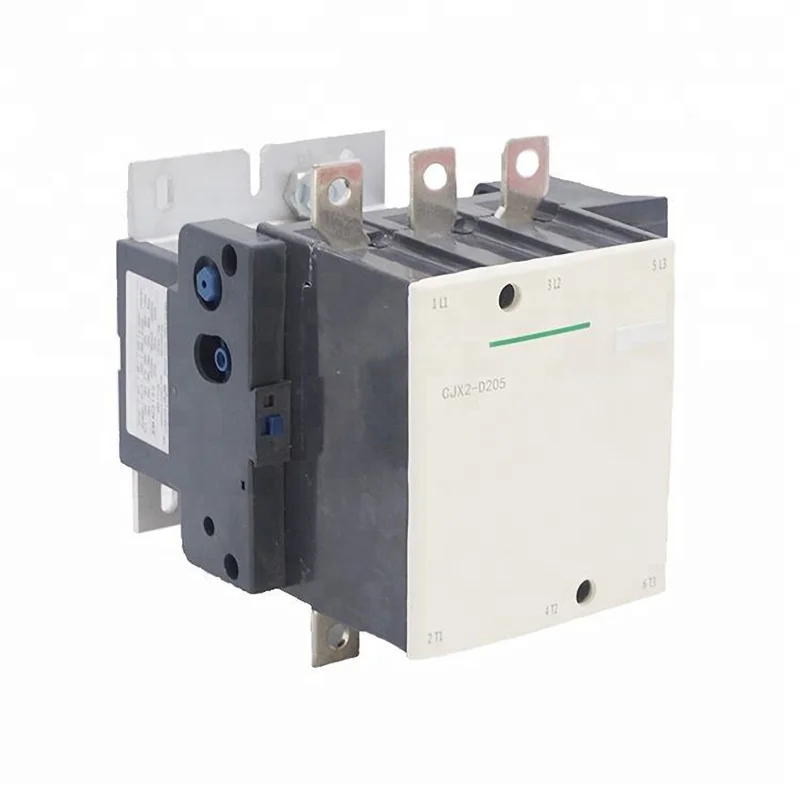

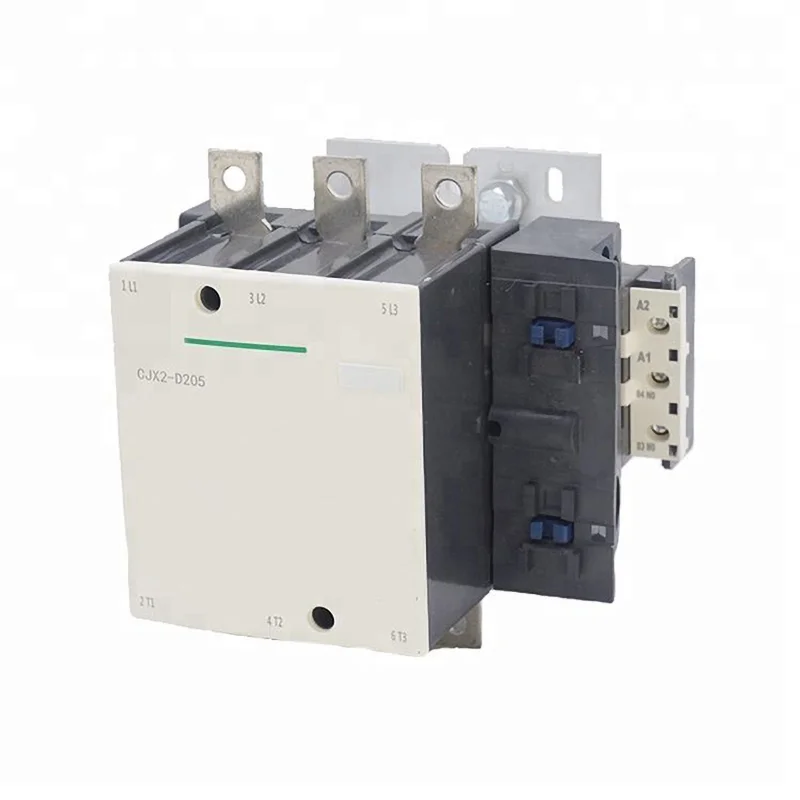

CJX2-D(LC1-D) Ac Contactor Supplier Factory
그리고 CJX2-D(LC1-D) Series Ac Contactor is designed for frequent starting and control of AC motors in circuits up to 660V AC and 95A. As a reliable Ac Contactor Supplier, manufacturer, and factory, we support OEM/ODM customization, bulk wholesale supply, and competitive wholesale prices for industrial users, electrical contractors, and distributors.
Key Feature
- Suitable for AC motor frequent starting and control
- Rated voltage up to 660V AC, 60Hz
- Rated current up to 95A
- Produced according to IEC 60947-4 specifications

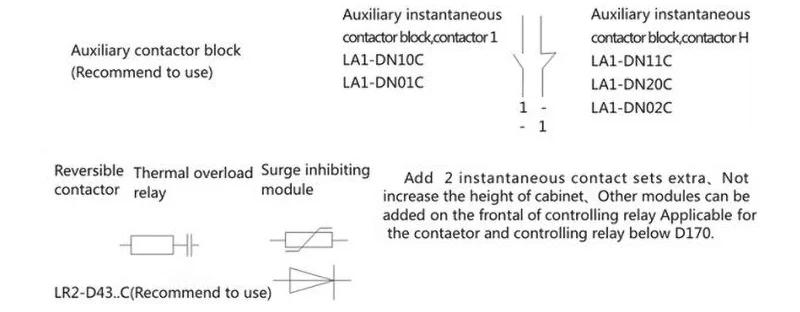

- Can be used with auxiliary contacts, time delay units, and interlocking devices
- Supports OEM/ODM, custom branding, wholesale, and distributor supply
Product Description
LC1-D series AC Contactors are suitable for circuits rated voltage up to 660v AC, 60Hz, with current up to 95 Amps for frequently starting & controlling AC motors. Combined with auxiliary contact blocks, pneumatic time delay & mechanical-interlocking devices, it can be used as a delay contactor, mechanical interlocking contactor, or star-delta starter. Create an electromagnetic starter by coupling an LRD thermal overload relay with the LC1-D Contactor. The contractors are produced according to IEC 60947-4 specifications. Coil voltages available: 24 VAC.
Technical parameters
| 유형 | 사양 | Unit | CJX2-D115 | CJX2-D150 |
|---|---|---|---|---|
| Rated current AC3 Ue ≤ 440V | — | A | 115 | 150 |
| Rated heating current AC1 θ ≤ 40℃ | — | A | 200 | 250 |
| Rated power AC3 Three-phase motor | 220/240V | kW | 30 | 40 |
| Rated power AC3 Three-phase motor | 380/400V | kW | 55 | 75 |
| Rated power AC3 Three-phase motor | 400V | kW | 59 | 80 |
| Rated power AC3 Three-phase motor | 500V | kW | 75 | 90 |
| Rated power AC3 Three-phase motor | 600/690V | kW | 80 | 100 |
| Rated power AC3 Three-phase motor | 1000V | kW | 75 | 90 |
| Rated power AC4 Three-phase motor θ < 40 | 200/230V | kW | 9 | 11 |
| Rated power AC4 Three-phase motor θ < 40 | 380/400V | kW | 18.5 | 22 |
| Rated power AC4 Three-phase motor θ < 40 | 440V | kW | 18.5 | 22 |
| Rated power AC4 Three-phase motor θ < 40 | 500V | kW | 30 | 37 |
| Weight | — | kg | 2.25 | 2.25 |
| Volume L × W × H | — | mm³ | 132×120×158 | 132×120×158 |
| Section of power connecting wire | — | mm² | 120 | 120 |
| Installation bolt H×L / Guiding rail | — | mm | 130×(95-110)-6.5 / 2×35×100 | 130×(95-110)-6.5 / 2×35×100 |
| Reference model | — | — | LC1-D115 | LC1-D150 |
| Control circuit voltage | AC 50Hz | V | 24(B5) | 42(D5), 48(E5) |
| Control circuit voltage | AC 60Hz | V | 24(B6) | 42(D6), 48(E6) |
| Control circuit voltage | AC 50/60Hz | V | 24(B7) | 42(D7), 48(E7) |
| Control circuit voltage | DC | V | 24(BD) | 48(ED), 60(ND) |
Product Details
그리고 CJX2-D(LC1-D) Series Ac Contactor is an electromagnetic switching device used to remotely make and break electrical circuits and frequently start or control AC motors. It is suitable for AC circuits with rated voltage up to 660V AC, 60Hz, and rated current up to 95A.
This product can be combined with auxiliary contact blocks, pneumatic time delay units, and mechanical interlocking devices. It can be used as a delay contactor, mechanical interlocking contactor, or star-delta starter. When coupled with an LRD thermal overload relay, it can form an electromagnetic starter for motor protection and control.
As a professional Ac Contactor Supplier, manufacturer, wholesaler, distributor, and factory, we provide OEM/ODM service, custom branding, private label, white label, bulk purchasing, and factory wholesale price solutions for global B2B buyers.
Product Parameter
| 매개변수 | 사양 |
|---|---|
| 제품 시리즈 | CJX2-D(LC1-D) Series Ac Contactor |
| Rated Voltage | Up to 660V AC, 60Hz |
| Rated Current | Up to 95A |
| Standard / Coil Voltage | IEC 60947-4 / 24 VAC |
자주 묻는 질문
1. What is the CJX2-D(LC1-D) Series Ac Contactor used for?
그리고 CJX2-D(LC1-D) Series Ac Contactor is used for frequently starting, stopping, and controlling AC motors in industrial and commercial electrical systems.
2. Are you an Ac Contactor Supplier for bulk orders?
Yes. We are an Ac Contactor Supplier, manufacturer, and factory offering bulk purchasing, wholesale supply, and competitive wholesale prices for distributors and contractors.
3. Can this Ac Contactor be used as a star-delta starter?
Yes. When combined with auxiliary contact blocks, pneumatic time delay, and mechanical interlocking devices, it can be used as a star-delta starter.
4. Do you provide OEM/ODM customization?
Yes. We provide OEM/ODM customization, private label, white label, and custom branding services for B2B buyers, wholesalers, and distributors.
5. What coil voltage is available for this model?
According to the provided product information, the available coil voltage includes 24 VAC.
