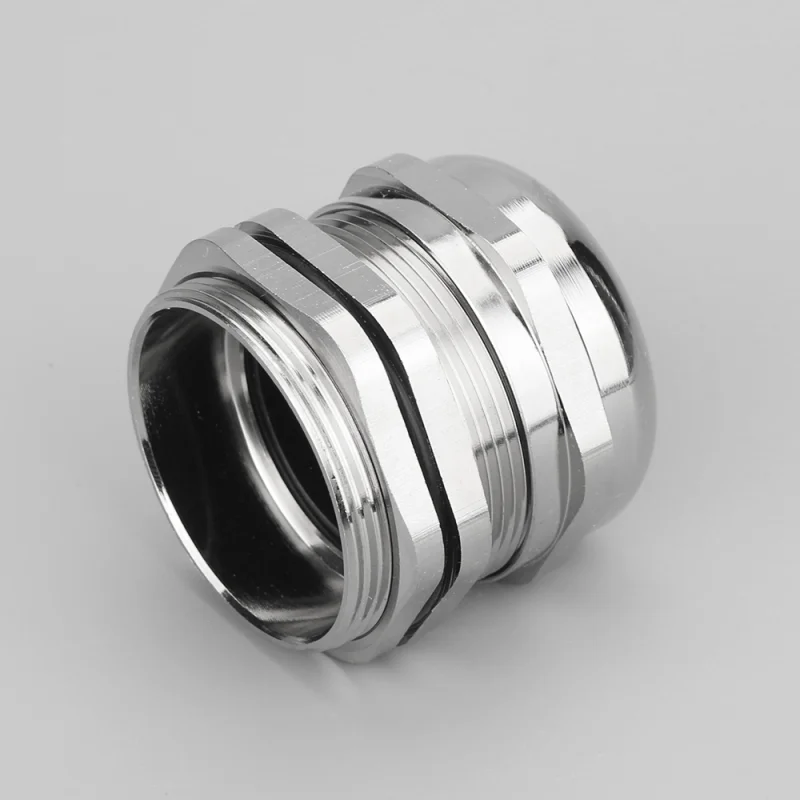

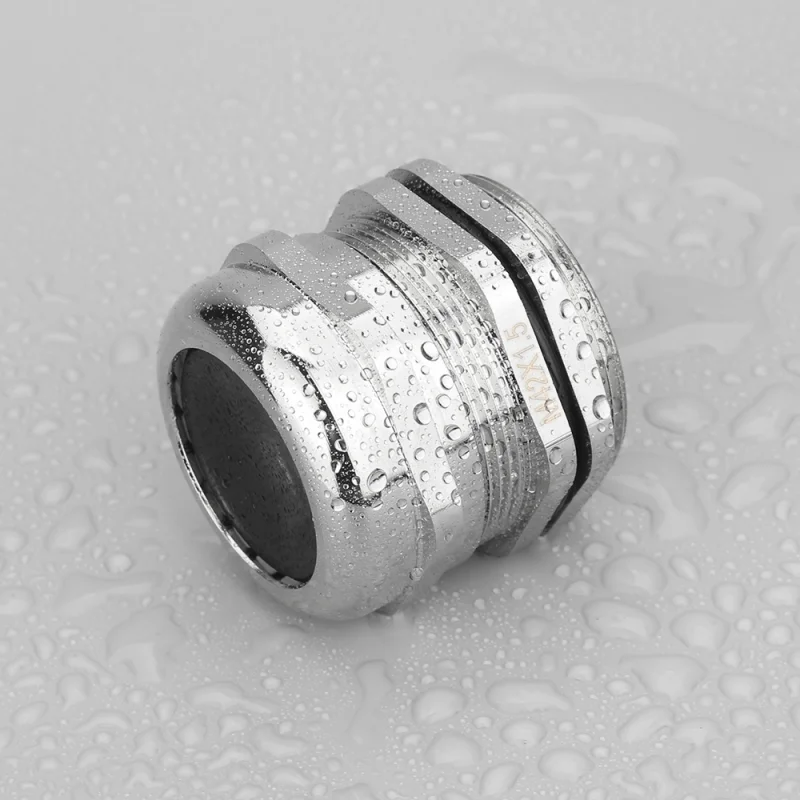

M42A Cable Gland Distributor for Outdoor Projects
M42A Outdoor Metric Series Dustproof Cable Gland features a robust nickel-plated brass body, weatherproof and dustproof IP66/IP68 sealing, and reliable strain relief for secure cable connections in outdoor and industrial environments.
- Product Certification: IP68、ISO9001、TUV
- Materials: Brass with nickel plated for body, Nylon PA for plastic claw
- ODM/OEM: Customizable stainless steel 304/316L material
사용 방법: 금속 케이블 방수 커넥터는 케이블의 완전한 세트를 형성하는 제품이며 커넥터 케이블은 잠글 수 있으며 다른 쪽 끝은 상자 본체의 장치에 액세스 할 수 있으며 전기 장치의 내부 스레드에 대한 가져 오기 및 내보내기에 따라 스레드 액세스를 선택할 수도 있습니다.
제품 이점 소개
- Stainless steel waterproof connector M series M42A provides IP68-grade waterproof protection for power and signal wiring in harsh environments.
- 니켈 도금 황동과 내구성이 뛰어난 씰링 링이 특징이며 강력한 내식성과 안전한 연결성을 제공합니다.
- 큰 직경과 견고한 구조로 고전류 또는 중장비 애플리케이션을 지원합니다.
- Ideal for marine, outdoor, and power system wiring, the M42A connector ensures lasting safety and reliability.
구조 다이어그램
인장 강도가 높으며 다양한 열악한 환경에 적합합니다. 방수, 방진, 방염, 산-알칼리성 및 다양한 화학 용매 환경에서 케이블의 정상적인 연결과 전송을 보장할 수 있습니다. 적용 범위가 확대됨에 따라 방수 케이블 글랜드는 실내와 실외 모두에서 널리 사용되고 있습니다. 케이블을 설치할 때 끊어진 선은 다시 연결해야 합니다. 기존 커넥터는 방수 기능이 없고 유지보수 비용이 높으며 안전성이 불충분합니다.
IP68 보호 기능과 높은 인장 강도를 갖춘 이 커넥터는 까다로운 조건에서도 지속적인 성능, 간편한 조립, 향상된 안전성을 보장합니다.
Choose M42A for critical wiring where durability and stable cable transmission are essential.
Product Description
The M42A Cable Gland is a high-performance outdoor metric cable gland designed for secure cable entry and reliable sealing in demanding environments. As a professional cable gland distributor, manufacturer, supplier, and factory, we provide durable and cost-effective solutions for global B2B buyers.
This cable gland is engineered with a precision sealing system that ensures excellent protection against dust and moisture. Its advanced claw design firmly grips cables while maintaining a wide clamping range, ensuring stable performance across various applications.
The M42A cable gland is widely used in outdoor electrical installations, industrial automation systems, control panels, power distribution equipment, and commercial infrastructure projects. It is ideal for industrial users, electrical contractors, distributors, and wholesalers seeking dependable products with OEM/ODM customization and competitive wholesale price.
주요 기능
- Reliable sealing with IP68-10 Bar protection for outdoor use
- Durable nickel-plated brass construction for corrosion resistance
- Secure cable grip with wide clamping range and “click” locking design
- Resistant to dust, water, oil, grease, and weak chemical exposure
- Supports OEM/ODM customization from professional factory with stable quality and wholesale price advantages
Product Specifications
- Model: M42A Cable Gland
- Thread Type: Metric, PG, G (PF), NPT available
- Material: Nickel-plated brass body, Nylon PA claw, NBR sealing components
- Temperature Range: -40℃ to 100℃ (up to 120℃ short-term), IP68 protection
제품 사양 표
| 모델 | Thread AG | 케이블 범위(mm) | 나사산 O.D(mm) | 장착 구멍 지름(mm) | 나사산 길이 GL(mm) | 본딩 길이 (mm) | 스패너 크기 (mm) |
| M14-NP | M14×1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 |
| M16-NP | M16×1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| M18-NP | M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| M20-NP | M20×1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| M22-NP | M22×1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| M24-NP | M24×1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 |
| M25-NP | M25×1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| M28-NP | M28×1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| M30-NP | M30×1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| M32-NP | M32×1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| M33-NP | M33×1.5 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| M36-NP | M36×1.5 | 25-18 | 36 | 36-36.2 | 10 | 31 | 40 |
| M37-NP | M37×1.5 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| M40-NP | M40×1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| M42-NP | M42×1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| M48-NP | M48×1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| M50-NP | M50×1.5 | 38-32 | 50 | 50-50.2 | 12 | 37 | 57/55 |
| M63-NP | M63×1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
FAQ (Frequently Asked Questions)
- Q1: Are you a cable gland distributor or manufacturer?
A: We are a professional manufacturer and supplier, and also serve as a reliable cable gland distributor with direct factory supply. - Q2: Do you support OEM/ODM customization?
A: Yes, we provide full OEM/ODM customization, including product design, thread types, and branding for distributors and contractors. - Q3: What applications is the M42A cable gland suitable for?
A: It is widely used in outdoor electrical systems, industrial automation, control panels, and power equipment. - Q4: Do you offer wholesale pricing for bulk orders?
A: Yes, as a direct wholesaler and factory, we offer competitive wholesale price solutions for large-volume purchases. - Q5: Is the M42A cable gland suitable for outdoor environments?
A: Absolutely. It is designed with high sealing performance and corrosion resistance, ensuring reliable operation in outdoor and harsh conditions.
Are you a cable gland distributor or manufacturer?
We are a professional manufacturer and supplier, and also serve as a reliable cable gland distributor with direct factory supply
Do you support OEM/ODM customization?
Yes, we provide full OEM/ODM customization, including product design, thread types, and branding for distributors and contractors.
What applications is the M42A cable gland suitable for?
It is widely used in outdoor electrical systems, industrial automation, control panels, and power equipment.
Do you offer wholesale pricing for bulk orders?
Yes, as a direct wholesaler and factory, we offer competitive wholesale price solutions for large-volume purchases.
Is the M42A cable gland suitable for outdoor environments?
Absolutely. It is designed with high sealing performance and corrosion resistance, ensuring reliable operation in outdoor and harsh conditions.
