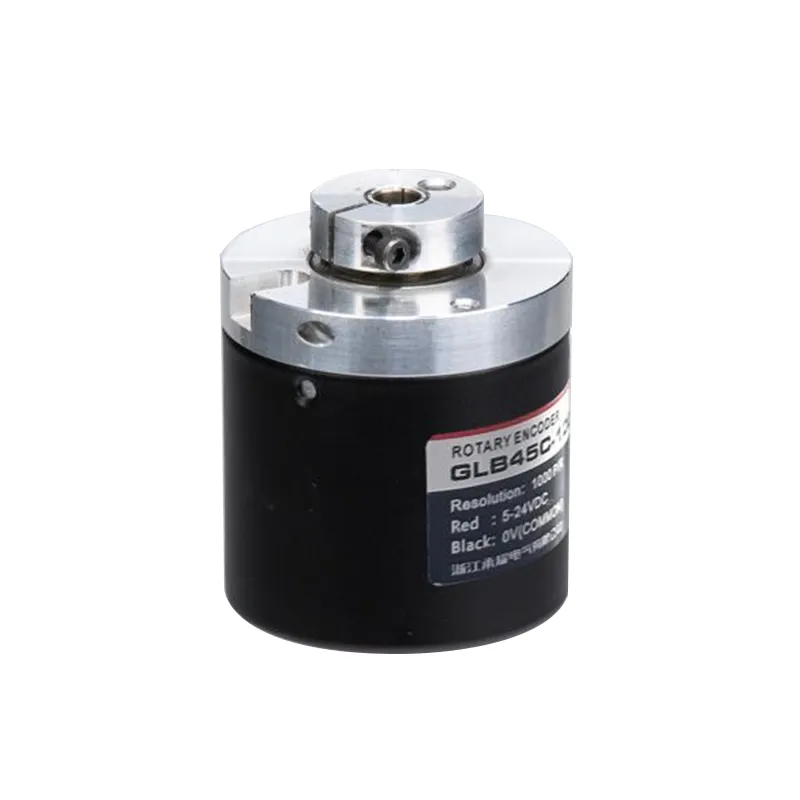

GLS45C Industrial Incremental Rotary Encoder for Motion Control

The GLS45C Incremental Rotary Encoder delivers high-precision feedback for industrial automation and control systems. Built with a rugged design and advanced sensing technology, it ensures consistent and reliable position and speed monitoring.

Request a Quote

Description

The GLS45C Incremental Rotary Encoder delivers accurate and stable position and speed feedback for a wide range of industrial automation applications. Engineered for durability and precision, this encoder supports various output signals and features robust mechanical construction to withstand harsh operating environments, making it a reliable choice for advanced motion control systems.

Main Features:

  • High-resolution incremental output with stable pulse signals

  • Compact and rugged design for industrial use

  • Multiple output options including TTL and open collector

  • Easy installation with standardized mounting flange and shaft coupling

  • Durable bearings and sealed design for longevity

  • Wide voltage supply range adaptable to different systems

Product Advantages:

  • Ensures precise rotational feedback for enhanced control accuracy

  • Robust construction minimizes downtime and maintenance costs

  • Versatile compatibility with diverse industrial control systems

  • Improves machine performance in automated production lines

  • Enables flexible installation in confined spaces

Product Model And Meaning

G L S 45  C 1000  C 3  2M
Category of
product		 Type of
product		 Form of
main shaft		 Contour of
product		 Outlet and
sealing form		 Resolution Output form Output signal Cable
G:incremental
type		 L:photoelec-
tricity		 S:solid shaft 45:φ45mm C:rear outlet 10,20,50,60,100,200,360,
400,500,600,800,
1000,1024,1200,2000,2048,2500,
3000,3600,4096		 C: open collector
output
F: complementary
output
L:5V drive output		 1:phase A signal
2:phase AB signal
3:phase ABZ signal
4:phase ABA/B/
signal
6:phase ABZA/B/Z/
signal		 Default
2m
line,For
non 2m,
labeling is
sufficient

Wiring Table

Line color C/F output signal – Line color Loutput signal
red VCC red VCC
black GND
black GND
green A phase
green A phase white B phase
yellow Z phase
white B phase
pink Aphase
yellow Z phase blue Bphase
orange Z phase
shield F ·G
shield F ·G

Output Phase Difference

complementary output/NPN collector open circuit output

1 (1)

long line drive output

1 (2)

Mechanical Drawings(mm)

1 (3)

Installation and Maintenance Steps:

  1. Mount the GLS45C encoder securely on the motor or machine shaft using the appropriate coupling.

  2. Align the encoder shaft accurately with the drive shaft to prevent mechanical stress.

  3. Connect the wiring according to the detailed wiring diagram, ensuring proper power supply and signal configuration.

  4. Test the encoder output signals to verify correct operation with the control system.

  5. Regularly inspect the encoder for dust, vibration effects, and mechanical wear.

  6. Perform routine cleaning and lubrication if required, following the manufacturer’s guidelines.

Detailed Product Applications:

Industrial automation and manufacturing lines requiring precise motion control

CNC machinery for real-time position feedback and speed regulation

Robotics where accurate shaft position detection is critical for operation

Conveyors and material handling systems to monitor speed and flow

Printing and packaging machines for synchronization and process control

Elevator systems to ensure smooth and safe shaft rotation monitoring

Wind turbine and renewable energy systems for blade position measurement

Medical devices where precision and reliability are essential
