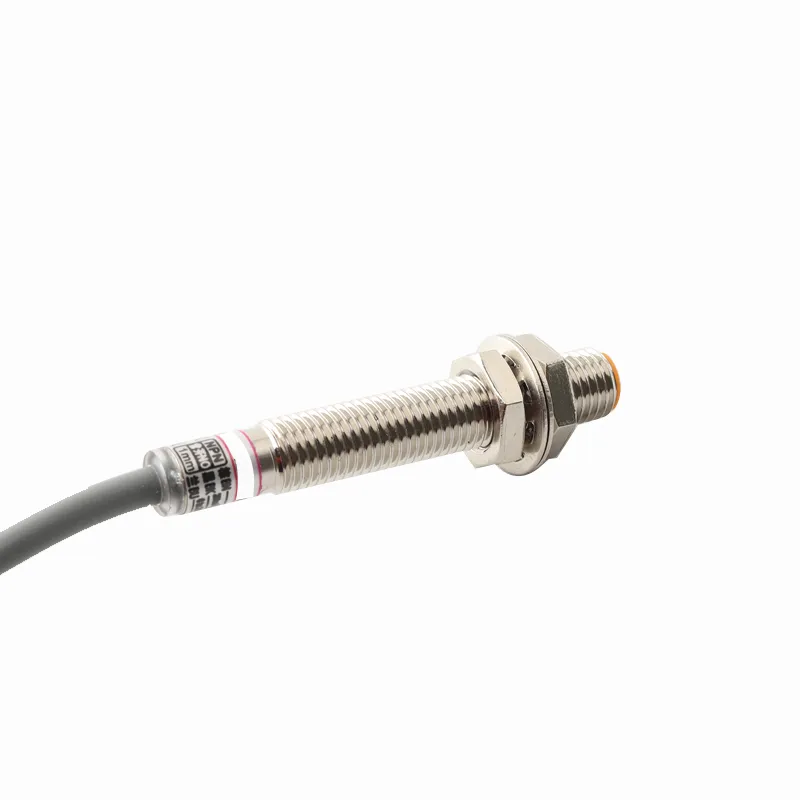

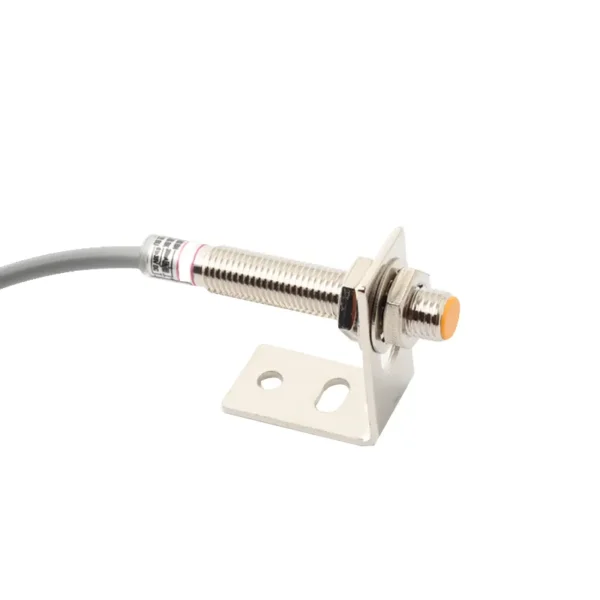

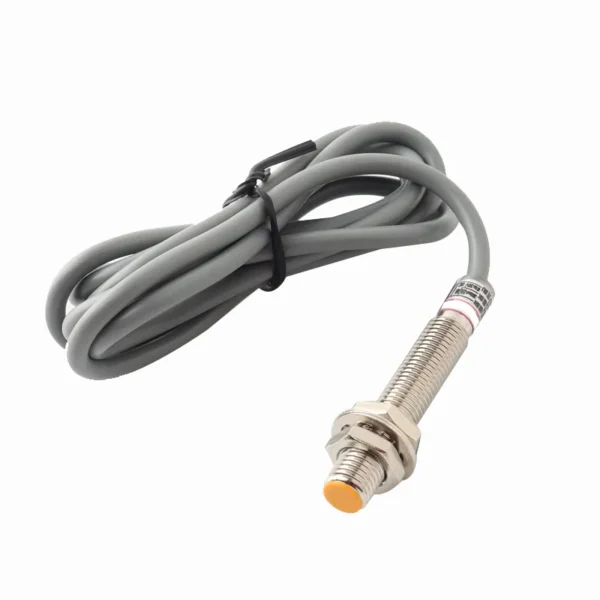

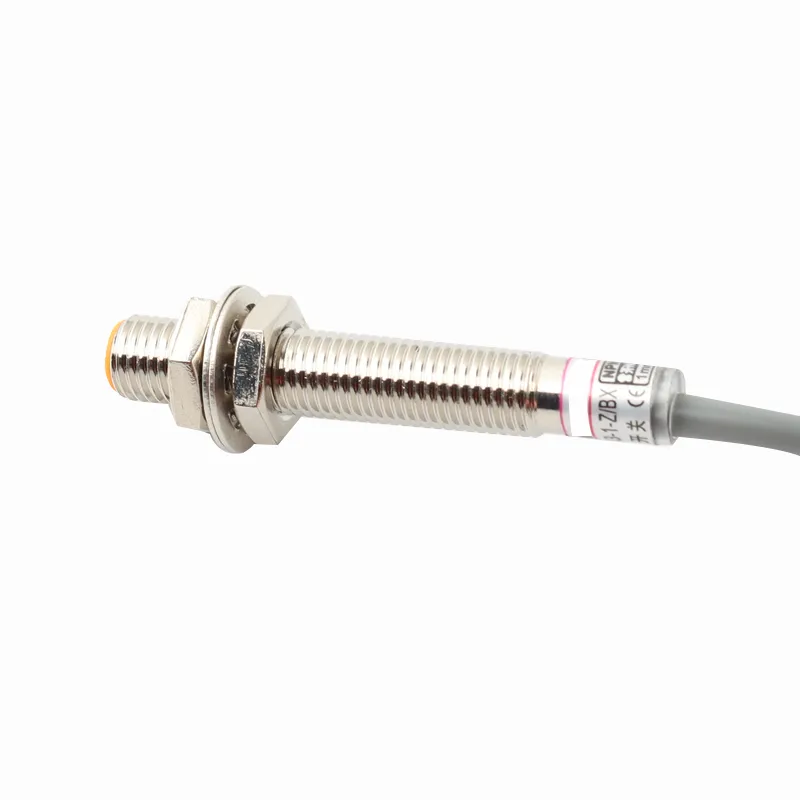

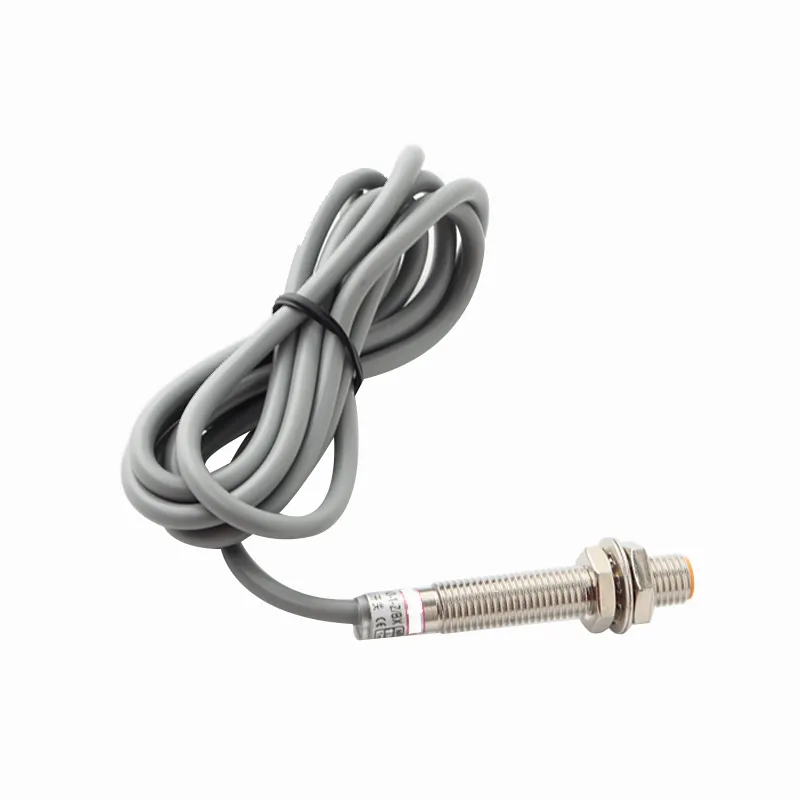

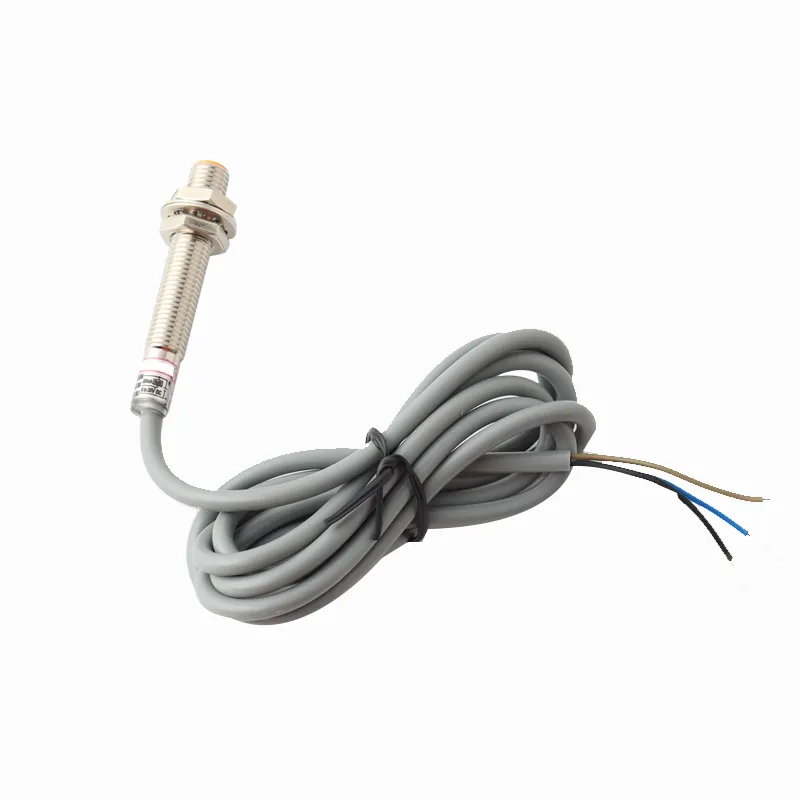

Inductive Proximity Switch Shielded M8
Inductive Proximity Switch Shielded M8 are also called proximity sensors. The sensor is divided into inductive, capacitive, analog, Hall, and magnetic. The sensor can be used with PLC programmable controllers, single-chip microcomputers, non-gate circuits, electronic counters, solid state relays, small relays and other products.
Description
Proximity switches are widely used in aviation, aerospace technology and industrial production. In daily life, such as hotels, restaurants, automatic doors of garages, automatic hot air blowers are used. In terms of security and anti-theft, such as data files, accounting, finance, museums, vaults and other important places, anti-theft devices composed of various proximity switches are usually installed. In measurement technology, such as length and position measurement; in control technology, such as displacement, velocity, acceleration measurement and control, a large number of proximity switches are also used.
| Product model: | M8 | |
| Model classification: | DC Type NPN NO | DC Type NPN NC |
| DC Type PNP NO | DC Type PNP NC | |
| DC Type 2Wire NO | DC Type 2Wire NC | |
| AC Type 2Wire NO | AC Type 2Wire NC | |
| Regular line length: | 1.2m | |
| Detection distance: | 1.5mm±10% | |
| Setting distance: | 0~1.2mm | |
| Standard detection object: | iron 8*8*1mm | |
| Response frequency: | DC: 0.5kHz AC: 25Hz | |
| Lag distance: | 10% or less of the detection distance | |
| Detection object: | Magnetic metal (detection distance decreases when non-magnetic metal) | |
| Power supply voltage: | DC type: DC12~24V (6~36V) pulsation (P-P) less than 10%; AC type: AC110~220V (36~250V) 50/60Hz | |
| Current consumption: | N.P type: 13mA or less, D type: 0.8mA or less, A type: 1.7mA or less | |
| Control output: | N.P type: below 300mA, D type below 200mA, A type: below 400mA | |
| Circuit protection: | N.P.D type: reverse connection protection, surge absorption, load short circuit protection, A type: surge absorption | |
| Ambient temperature and humidity: | during operation, during storage: -30~+65℃ each;
(No freezing, no condensation), during operation, during storage: 35~95% each |
|
| Insulation resistance: | above 50MΩ (DC500 megohmmeter) between the charging part and the shell | |
| Withstand voltage: | AC1000V 50/60Hz 1min between the charging part and the shell | |
| Influence of temperature: | temperature range -30~+65℃, when +23℃, within ±15% detection distance, temperature range -25~+60℃, when +23℃, within ±10% detection distance | |
| The influence of voltage: | within ±15% of the rated power supply voltage range, within ±10% of the detection distance of the rated power supply voltage value | |
| Protection structure: | IP65 (IEC standard) | |
| Material: | (Shell: Nickel-plated brass) (Detection surface: ABS) | |
Inductive Proximity Switch Shielded M8 the sensor is composed of high-frequency oscillation, detection, amplification, triggering and output circuits. The oscillator generates an alternating electromagnetic field on the detection surface of the sensor. When a metal object approaches its detection surface, the eddy current generated in the metal absorbs the energy of the oscillator, weakening the oscillation and even stopping the vibration. The two states of oscillation and stop of the oscillator are converted into electrical signals through the shaping amplifier and converted into binary switching signals, which are output after power amplification.Our products have high-quality materials, are easy to install, and are durable and suitable for various industrial equipment.With expertise, expertise and experience, we are striving to do better.
