LD20 Series Aviation Connector

LD20 Series Aviation Connector features flame-retardant PA6 shell, PPS insulation to 240°C, gold-plated contacts, threaded and screw crimp connection. Rated for 500+ insertions, it operates from -25°C to 85°C .

Запрос Цитировать

Характеристики товара

Connection method: threaded connection
Shell material: Thermoplastic PA6 (flame retardant)
Insulator: Thermoplastic with high temperature resistance of 240℃
Contactmaterial: gold-plated
Wiring method: screw crimping
Insertion frequency: greaterthan 500 times
Temperature range: -25℃ to 85℃

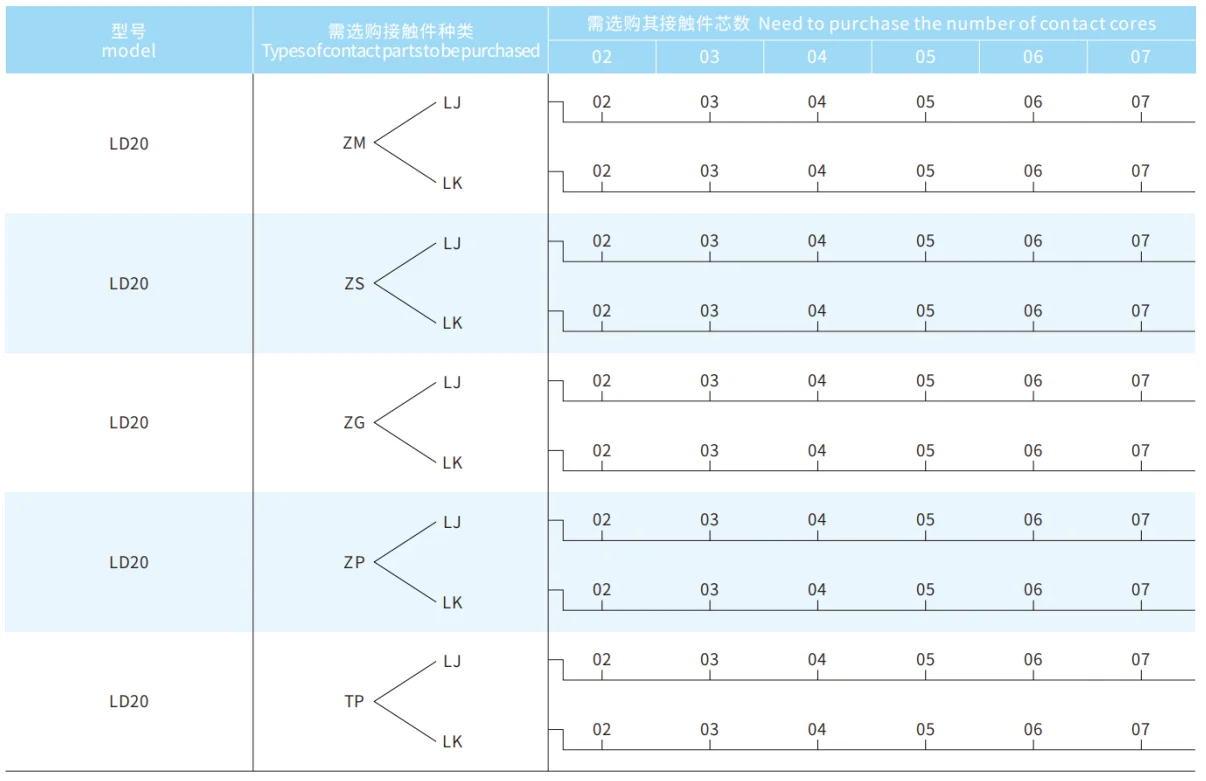

Modelimplication

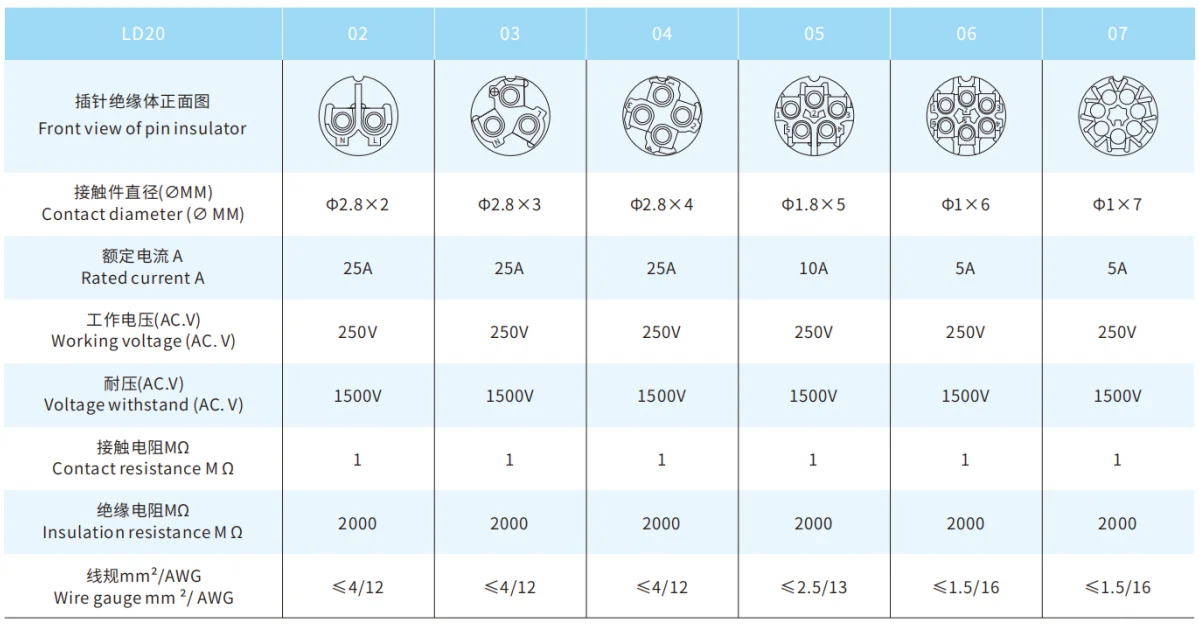

Number of cores

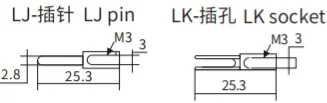

Contact type: screw crimping
Shell structure form

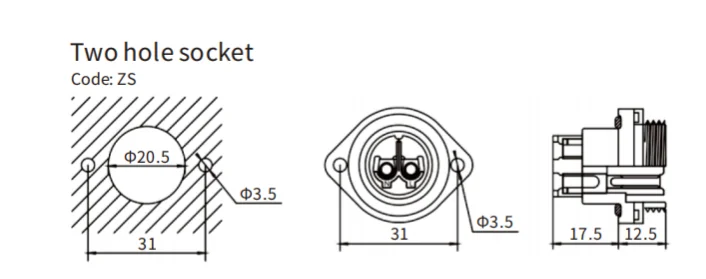

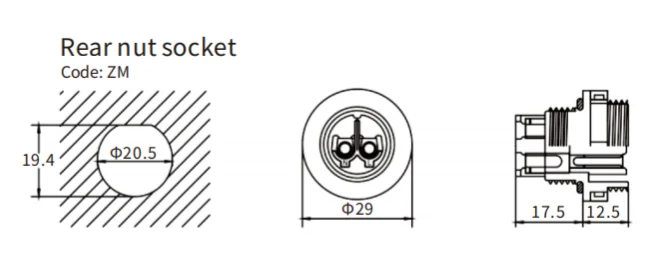

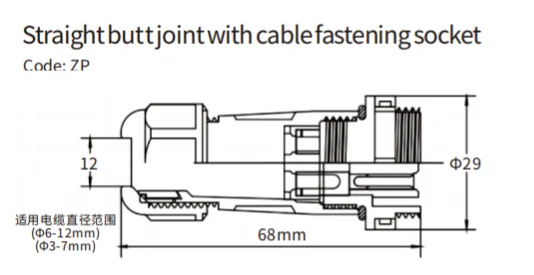

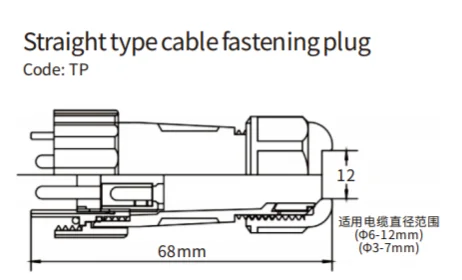

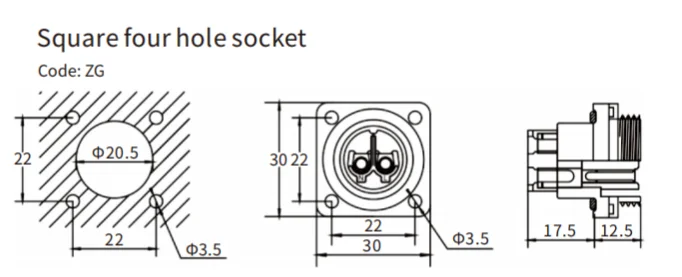

ZM)-Rear nut socket ZS)-2-hole socket ZG)-Square 4-hole socket ZP)-Straight butt joint with cable fastening socket TP)-Straight type cable fastening plug
Socket and panel fitting diameter
Title code
