SD20 Series Waterproof Aviation Connector – Durable & High-Temp
SD20 Series Aviation Connector features a threaded connection, PA66/PA6 shell, PPS insulator rated to 260°C, gold-plated copper contacts, and supports welding. It is rated for over 500 insertions, operates from -25°C to 85°C, and is suitable for 6–8mm cables.
Interested in this product?
Please contact our sales team for the latest pricing, lead time, and technical consultation.
Характеристики товара
- Connection method: threaded connection
- Shell material: Thermoplastic PA66,PA6
- Insulator: Thermoplastic PPS with high temperature resistance of 260℃ Contact
- material: copper(gold-plated)
- Wiring method: Welding
- Insertion frequency: greater than 500 times
- Temperature range: -25℃ to 85℃
Modelimplication
- Number of cores
- Types of contact parts
- Structural form ofsocket housing ZM)-Rear nut socket ZS)-2-hole socket ZG)-Square4-hole socket ZP)-Straight butt joint with cable fastening socket ZR)-Straight docking hose street socketZN)-Straight with NPT ½ Screw socket

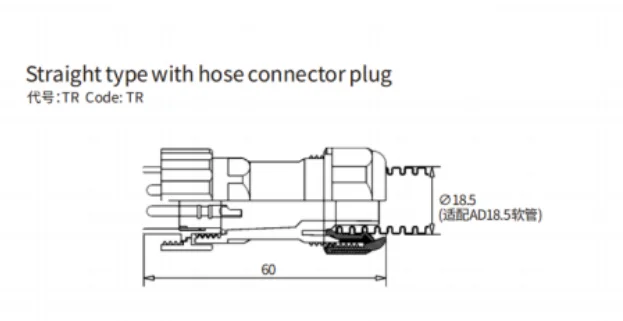

- Plug TA)-Bent type cable fastening plug TC)-Bent type with hose connector plug TP)-Straighttype cable fastening plug TR)-Straight street plug with hose TN)-Straight with NPT ½ Threaded plug
- Socket and panel fiting diameter

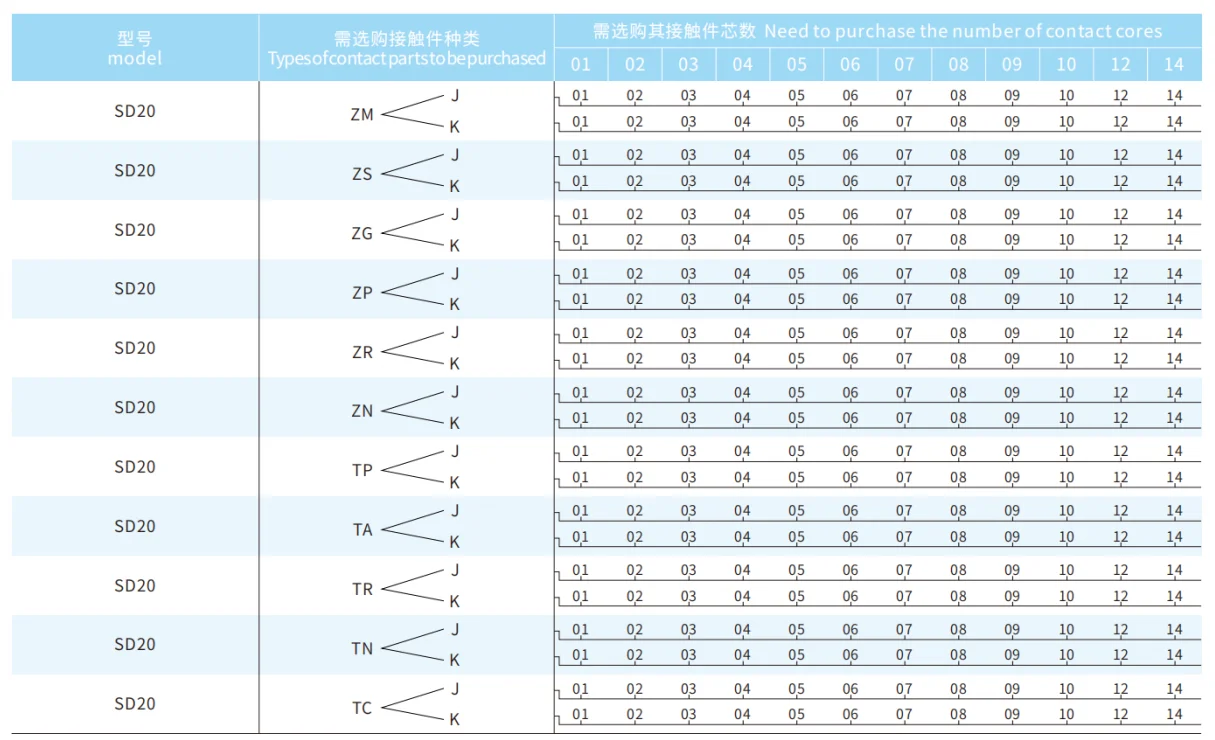

- Title code

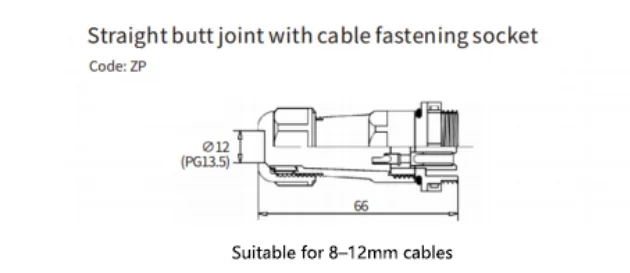

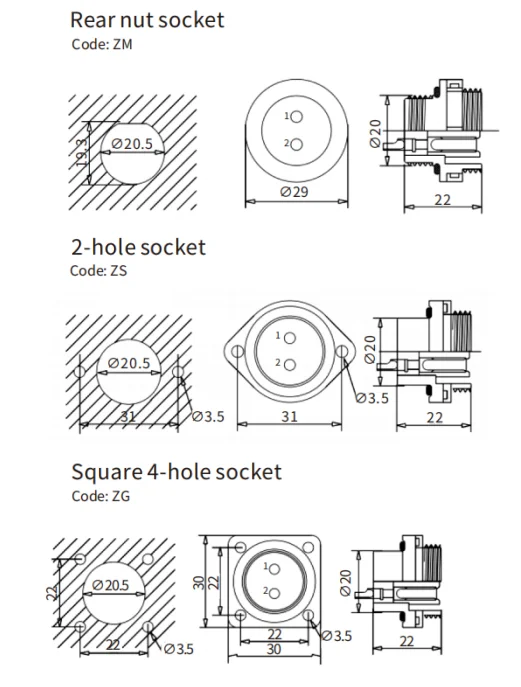

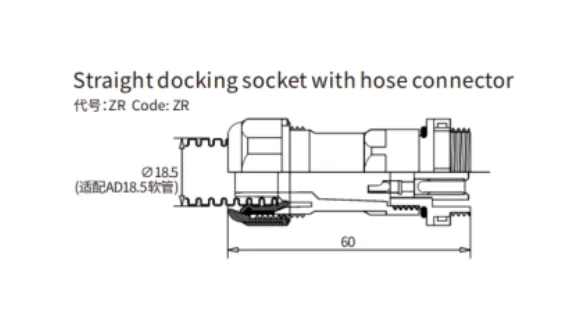

Серия гнезд SD20, код и диаграмма размеров

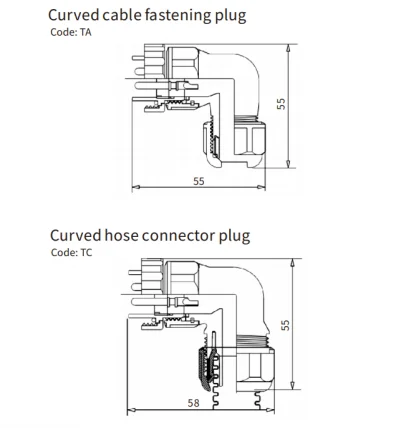

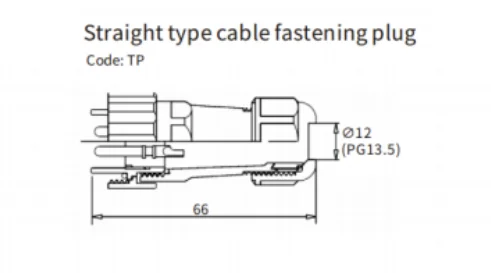

Серия штекеров SD20, код и диаграмма размеров

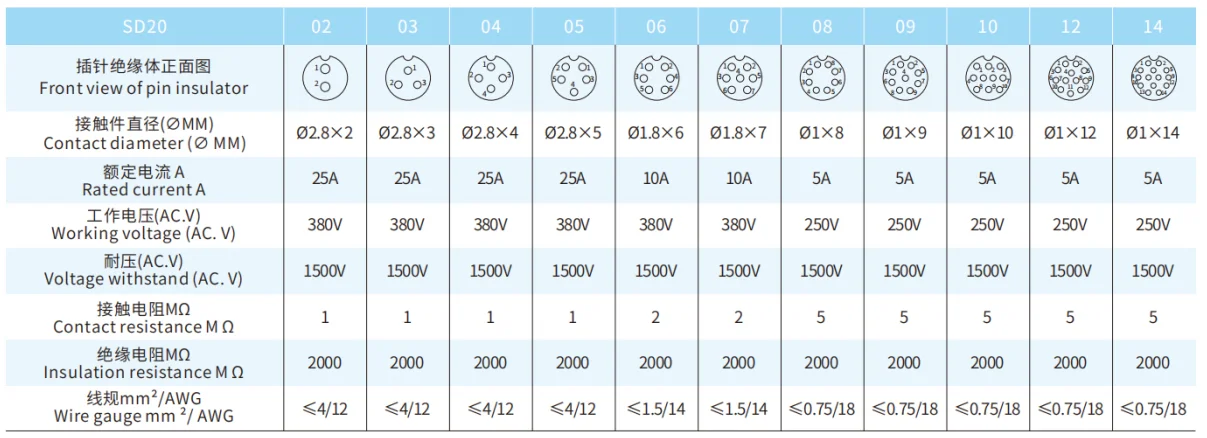

Main Technical Parameters
