Wireless Remote Control for Hoist F24-8S, 8 Button Industrial
Industrial remote control Transmitter F24-8S/8D and Receiver Set offers cost-effective operation with eight-function control, robust safety features, and reliable performance for demanding industrial environments. Designed for cranes and hoists, it combines long-range capability (typically ~100 m), IP-rated protection, and a secure 32-bit safety code to ensure stable, secure remote control in harsh conditions.
Interested in this product?
Please contact our sales team for the latest pricing, lead time, and technical consultation.
제품 특징
8 single buttons+1start+1 stop button
Suitable for MD double speed electric hoist or hook double speed/single speed driving and industrial control with less than 10 contacts
표준 구성
작고 절묘하고 비용 효율적이며 사용하기 쉽습니다.
- 1 piece transmitter(include Waist Belt)
- 1 piece Protective Case
- 1 piece receiver
- Piece receiver with 1.2metre cable connector
- 1 pairs batteries
- 1 piece Receiving antenna
- 1 operation and maintenance manual
F21-TX 송신기 매개변수
| 제품 셸 | 유리 섬유 PA |
| 크기/무게 | 156×61×51mm 255g |
| 송신기 전원 | AA 알카라인 건전지 2개(미포함) |
| 안전 코드 | 32비트(43억)ID 반복 금지 |
| 온도 범위 | -35℃~+80℃ |
| 제어 거리 | ≤100M(200M 사용자 지정 가능) |
F21-RX 수신기 파라미터
| 제품 셸 | 유리 섬유 PA |
| 크기/무게 | 168×166×93cm 780g |
| 수신기 전원 | 24V, 36V, 220V, 380V 전압(선택 가능) |
| 안전 코드 | 32비트(43억)ID 반복 금지 |
| 온도 범위 | -35℃~+80℃(배터리 온도 고려하지 않음) |
| 케이블 길이 | 1.2 metre (Other length can be customized) |
| 출력 컨택터 용량 | 5AMP hermetically sealed relay |

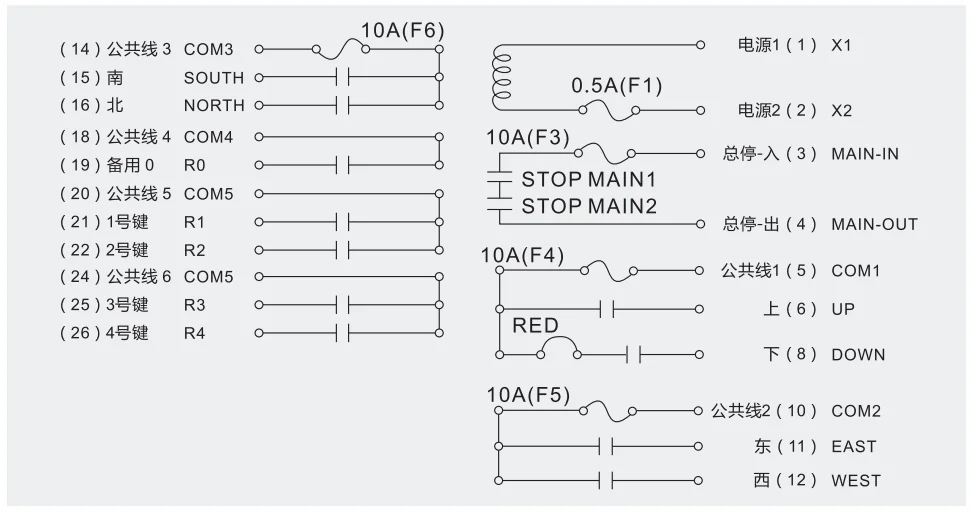

전기 회로도
보안
Each remote control system has a unique identity code under all operating conditions,which means that only the correct control maximum securityThe control system has obtained FCC and CE certification.
