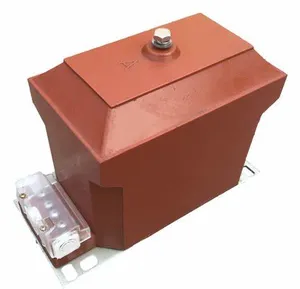

10kv Jdzx10-10 Instrument Voltage Current Potential/Voltage Transformer Indoor PT

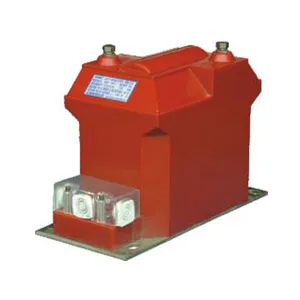

This series single-phase epoxy resin casting insulation voltage transformer is fully enclosed products, suitable for rated frequency 50 hz or 60 hz, rated 10 kv power system, for electric energy metering, voltage detection and relay protection. This product conforms to the IEC186 and GB1207-1997 standard for voltage transformer

Types of meaning

This series of voltage transformer is fully enclosed, epoxy resin core and winding note as a body, small volume, light weight, cover two pins with the outlet box, and there are three different direction of feed export

1. Product standards: GB1207-1997 “voltage transformer”

2. The load power factor: COS Φ = 0.8 (lag)

3. The product surface creepage than meet the grade II pollution level.See table

4. Other technical parameters

1. Power System

Power Plant and Substation:

These voltage transformers are an indispensable electrical appliance for power transmission and power supply systems such as power plants and substations. They are used to convert high voltage into low voltage in proportion for energy metering, voltage monitoring and relay protection.

Transmission Line and Distribution System:

In transmission lines and distribution systems, JDZX10-10 voltage transformers can be used to monitor voltage levels to ensure stable operation of the power system. At the same time, they can also provide reliable voltage signals for relay protection devices so that the faulty part can be removed in time when a fault occurs to protect the safety of the power system.

2. Industrial and Commercial Fields

Industrial Production Line:

In some large industrial production lines, voltage transformers may be needed to monitor the voltage level of equipment to ensure the normal operation and safe production of equipment. JDZX10-10 voltage transformers are favored for their high accuracy and good stability.

Commercial Buildings:

In commercial buildings, such as shopping malls, office buildings, etc., the stable operation of the power system is essential. JDZX10-3, 6, 10 voltage transformers can be used in the power distribution systems of these buildings to provide reliable voltage signals for power metering and protection devices.

3. Other application scenarios

Laboratories and test scenarios:

In electrical test laboratories, precision voltage transformers (including JDZX10-10, etc.) can be used to expand the measurement range and measure voltage, power and electric energy. This is of great significance for scientific research and product development.

Special environments:

Since JDZX10-10 voltage transformers are resistant to pollution and moisture and are suitable for use in tropical areas, they can also be used in some special environments, such as power systems in harsh climatic conditions such as seaside and desert.
