The COP-3MS(D) industrial control component features a push lock revolve emergency stop button with a one-off / one-off two-on contact configuration, designed for safe and reliable operation in industrial remote controllers. The product integrates a clearly defined electrical schematic, ensuring stable switching performance and precise circuit control. Key technical parameters include a rated insulation voltage (Ui) of 500V and a rated current (Ith) of 10A, with AC-15 ratings of 2A at 500V and 5A at 250V. Engineered for durability and safety, it is well suited for applications such as cranes, hoists, industrial automation systems, and wireless remote control equipment.
Electrical schematic
Working Principle
This controller operates by sending an immediate stop signal from the emergency stop button or via the remote control handle to the connected industrial machinery or crane control system. Pressing the emergency stop button breaks the control circuit, cutting power and commanding the machine to stop operations instantly. The remote control handle transmits wireless signals to trigger the emergency stop from a safe distance, ensuring operator safety in hazardous zones. The system remains locked in a safe state until manually reset, preventing accidental restarts.
Main Components
Emergency Stop Button: Large, easy-to-press mushroom head button designed for quick activation.

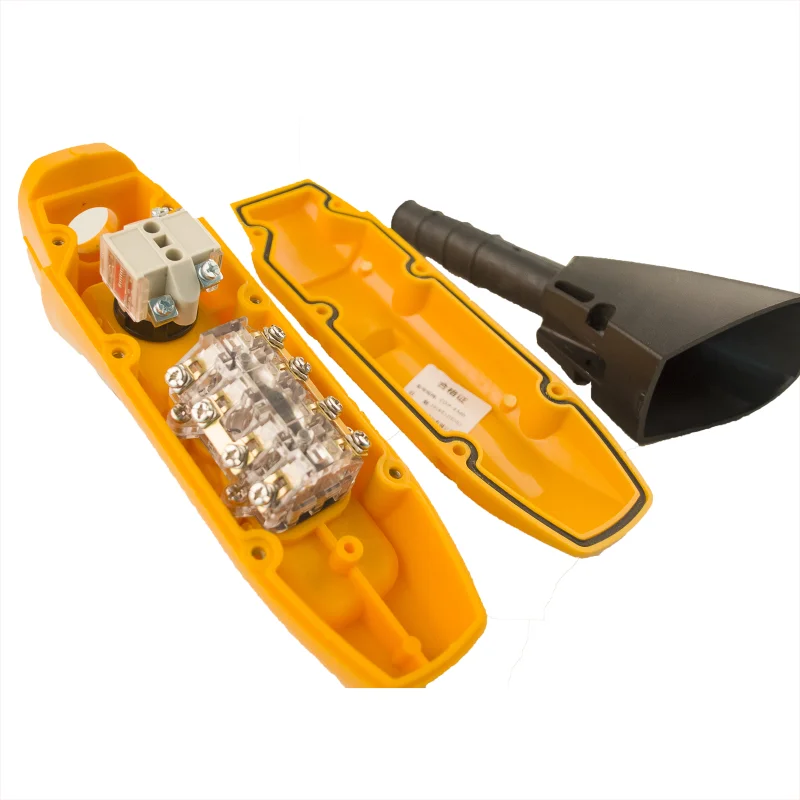

Industrial Controller Unit: Houses the control electronics and relay mechanisms.

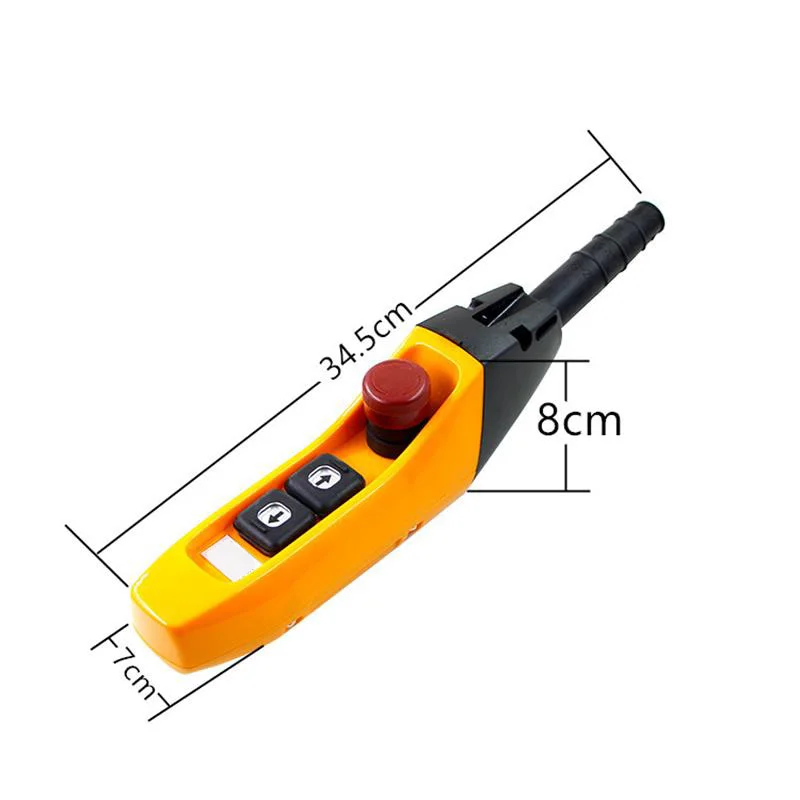

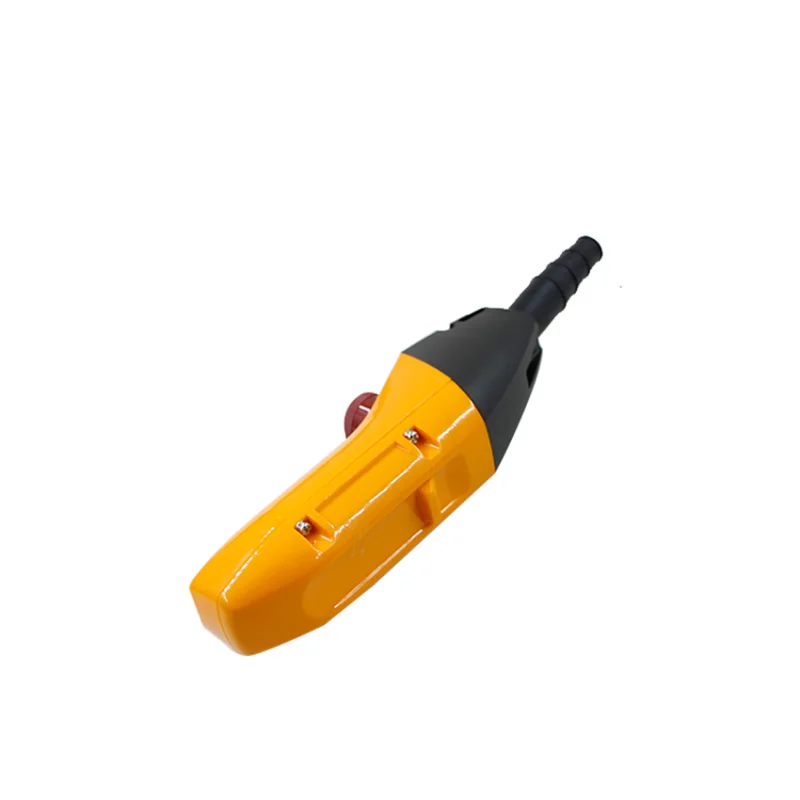

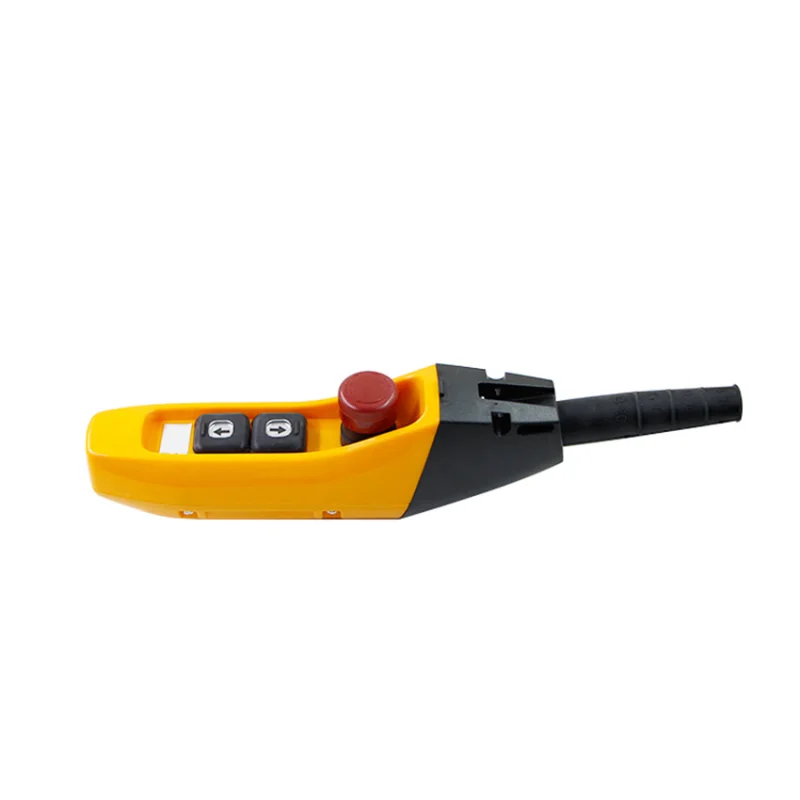

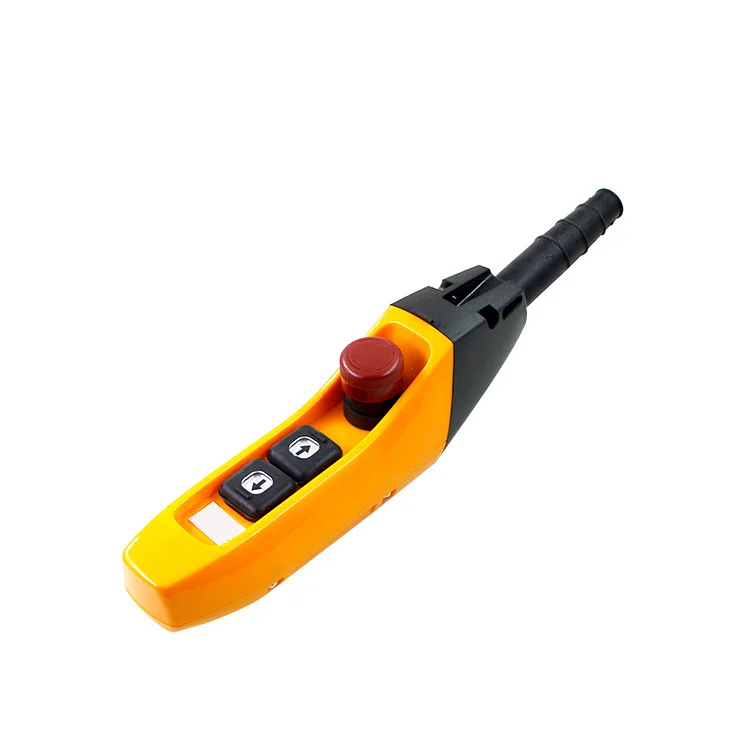

Crane Remote Control Handle: Ergonomic wireless control with integrated emergency stop and movement commands.
Wireless Transmitter and Receiver Modules: Ensure reliable communication between remote handle and controller.
Power Supply Input: Compatible with various industrial voltage standards.
Reset Switch: Manual reset to restore system operations after emergency stop activation.
Product Advantages
- Enhanced Safety for Crane Operations: Immediate shutdown capability minimizes accident risks during crane handling.
- Remote Emergency Control: Enables operators to stop machines from a safe distance, improving hazard prevention.
- Ergonomic and User-Friendly Design: The crane remote handle offers comfortable grip and intuitive controls.
- Durable and Rugged Construction: Suitable for harsh industrial environments with dust and moisture resistance.
- Easy Integration: Compatible with a wide range of industrial control systems, including PLC and crane controllers.
- Compliance with Safety Standards: Meets international industrial safety certifications, ensuring reliability.
