Pendant Control Station

COP-5MSS(DD)

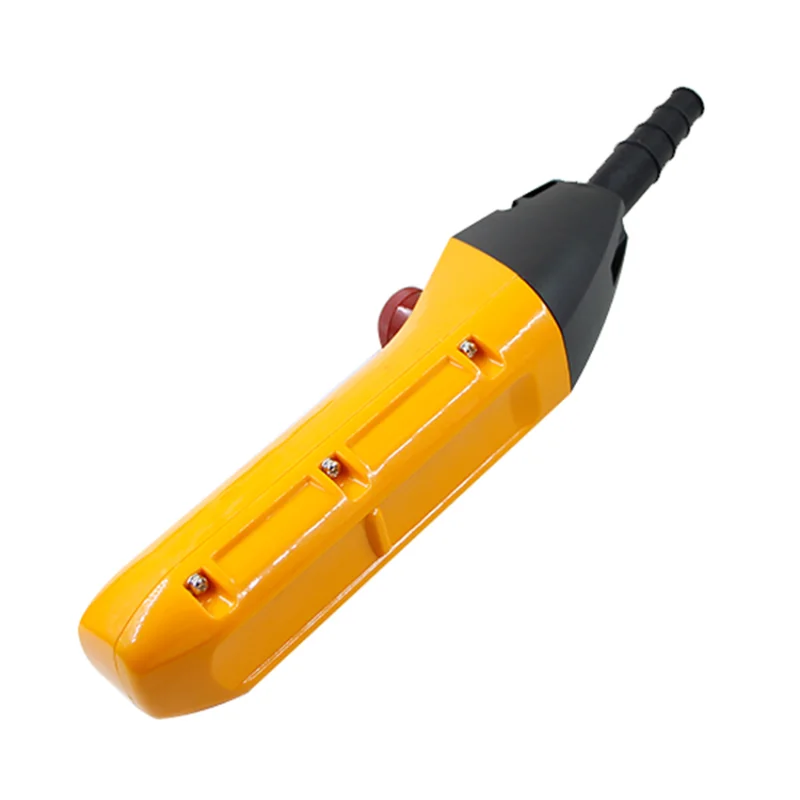

COP-5MSS(DD) Pendant Control Push Button Switch with Emergency Stop, 5-Button Handheld Crane & Hoist Controller, AC 500V 10A, Industrial Control.

Request a Quote

The COP-5MSS(DD) pendant control switch featuring push-lock emergency stop and 5-button layout, rated AC 500V 10A, reliable handheld controller for cranes, hoists, and industrial machinery with safe, ergonomic operation.

Electrical schematic

8

Working Principle

This controller operates by sending an immediate stop signal from the emergency stop button or via the remote control handle to the connected industrial machinery or crane control system. Pressing the emergency stop button breaks the control circuit, cutting power and commanding the machine to stop operations instantly. The remote control handle transmits wireless signals to trigger the emergency stop from a safe distance, ensuring operator safety in hazardous zones. The system remains locked in a safe state until manually reset, preventing accidental restarts.

7

Main Components

  • Emergency Stop Button: Large, easy-to-press mushroom head button designed for quick activation.
  • Industrial Controller Unit: Houses the control electronics and relay mechanisms.
  • Crane Remote Control Handle: Ergonomic wireless control with integrated emergency stop and movement commands.
  • Wireless Transmitter and Receiver Modules: Ensure reliable communication between remote handle and controller.
  • Power Supply Input: Compatible with various industrial voltage standards.
  • Reset Switch: Manual reset to restore system operations after emergency stop activation.

2_p

Product Advantages

  • Enhanced Safety for Crane Operations: Immediate shutdown capability minimizes accident risks during crane handling.
  • Remote Emergency Control: Enables operators to stop machines from a safe distance, improving hazard prevention.
  • Ergonomic and User-Friendly Design: The crane remote handle offers comfortable grip and intuitive controls.
  • Durable and Rugged Construction: Suitable for harsh industrial environments with dust and moisture resistance.
  • Easy Integration: Compatible with a wide range of industrial control systems, including PLC and crane controllers.
  • Compliance with Safety Standards: Meets international industrial safety certifications, ensuring reliability.
