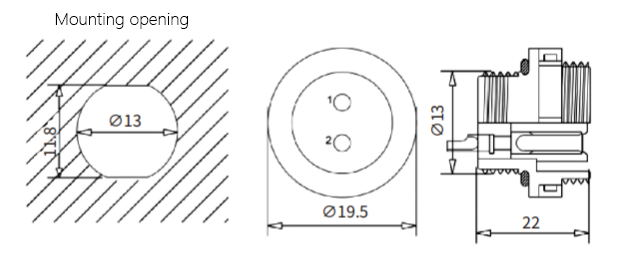

Rear nut socket
Code name：ZM

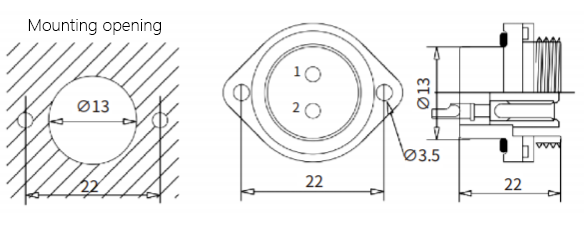

Hole socket
Code name：ZS
Straight buttjointwith cable fastening socket
Code name：ZP
Applicable to 4-6.5mm cables

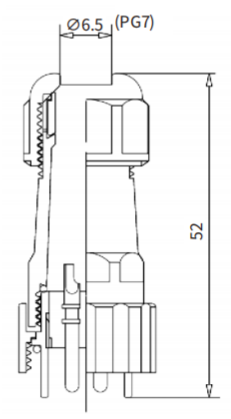

Straight type cable with sturdy plug
Code name:TP

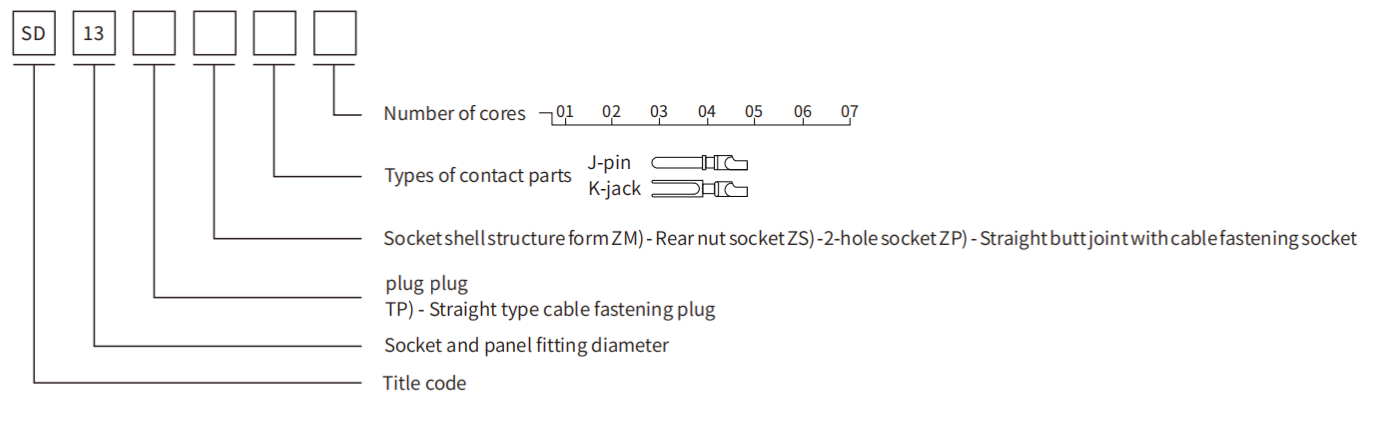

| model | Typesofcontactpartstobepurchased | Need to purchase the number of contact cores | |||||||
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | |||
|
SD13 | ZM | J | 01 | 02 | 03 | 04 | 05 | 06 | 07 |
| K | 01 | 02 | 03 | 04 | 05 | 06 | 07 | ||
|
SD13 | ZS | J | 01 | 02 | 03 | 04 | 05 | 06 | 07 |
| L | 01 | 02 | 03 | 04 | 05 | 06 | 07 | ||
|
SD13 | ZP | J | 01 | 02 | 03 | 04 | 05 | 06 | 07 |
| L | 01 | 02 | 03 | 04 | 05 | 06 | 07 | ||
|
SD13 | TP | J | 01 | 02 | 03 | 04 | 05 | 06 | 07 |
| L | 01 | 02 | 03 | 04 | 05 | 06 | 07 | ||
| SD13 | 01 | 02 | 03 | 04 | 05 | 06 | 07 |
| Front viewofpin insulator | 10 | 1O ²0 | 10 | O⁷C 1O | |||
| Contact diameter(OMM) | 2.8×1 | ⊗1.8×2 | @1×3 | @1×4 | ②1×5 | @1×6 | ⑦1×7 |
| Rated currentA | 25A | 10A | 5A | 5A | 5A | 5A | 5A |
| Working voltage(AC.V) | 380V | 380V | 250V | 250V | 250V | 250V | 250V |
| Voltage withstand(AC.V) | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
| Contact resistance MΩ | 2 | 2 | 5 | 5 | 5 | 5 | 5 |
| Insulation resistance MΩ | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Wire gauge mm²/AWG | ≤4/12 | ≤1.5/14 | ≤0.75/18 | ≤0.75/18 | ≤0.75/18 | ≤0.75/18 | ≤0.75/18 |
