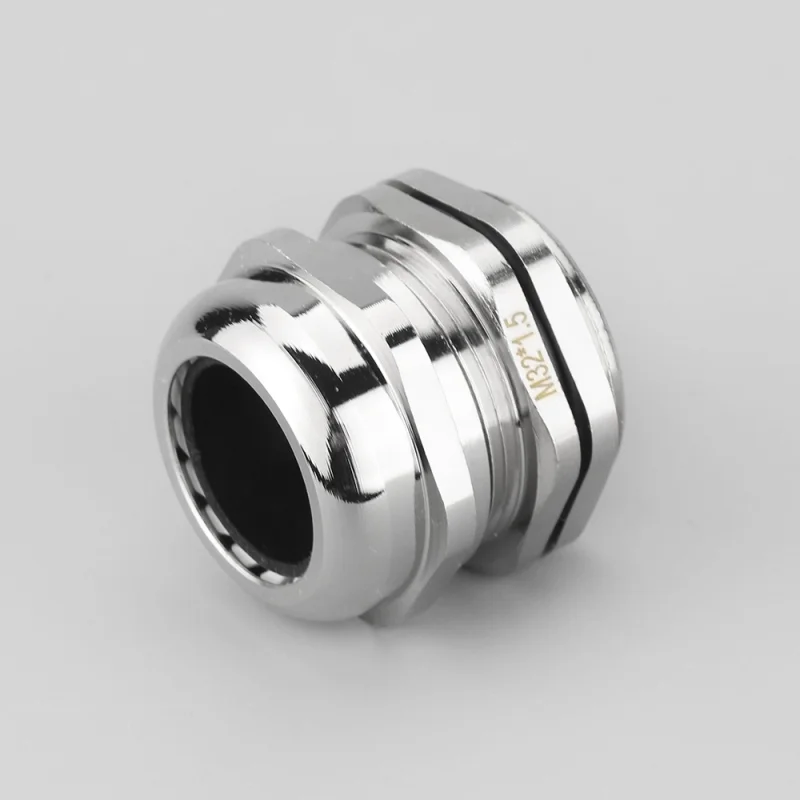

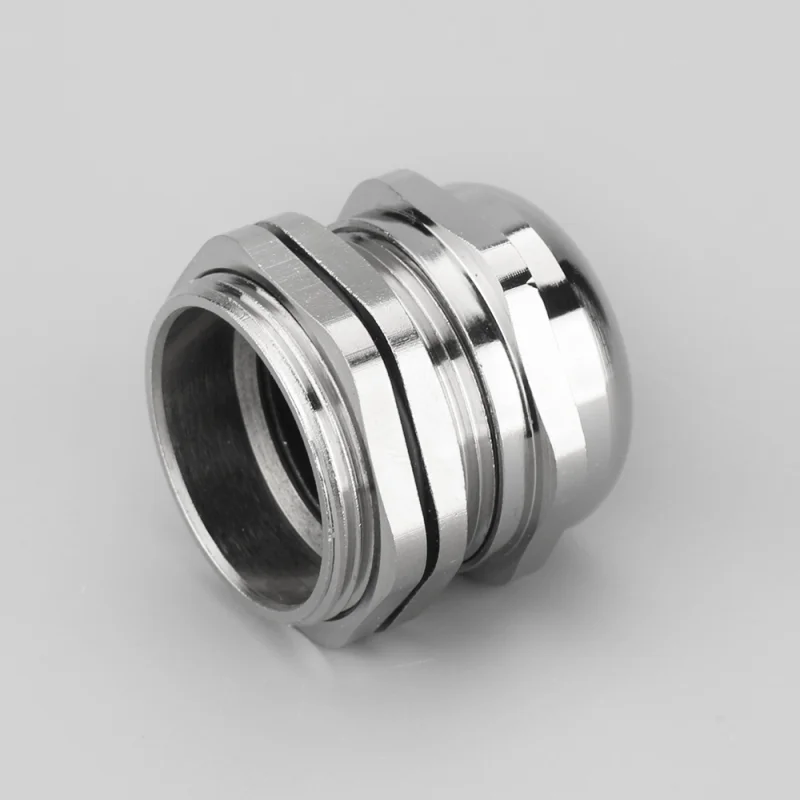

M32A Metal Cable Gland for Large Diameter Cables
Stainless steel waterproof connector M series M32A offers strong tensile strength and IP68 protection for secure cable installations.Its wide clamping range supports flexible wiring and ensures resistance to corrosion, dust, and chemicals.
- Product Certification: IP68、ISO9001、TUV
- Materials: Brass with nickel plated for body, Nylon PAfor plastic claw, NBR for sealing insert and O-sealing ring.
- ODM/OEM: Customizable stainless steel 304/316L material
Method of use: the metal cable waterproof connector is the product of form a complete set of the cable, connector cable can be lock, the other end can access devices on the box body, also can choose thread access accordingl to the import and export for the internal thread of electric devices.
Product advantage introduction

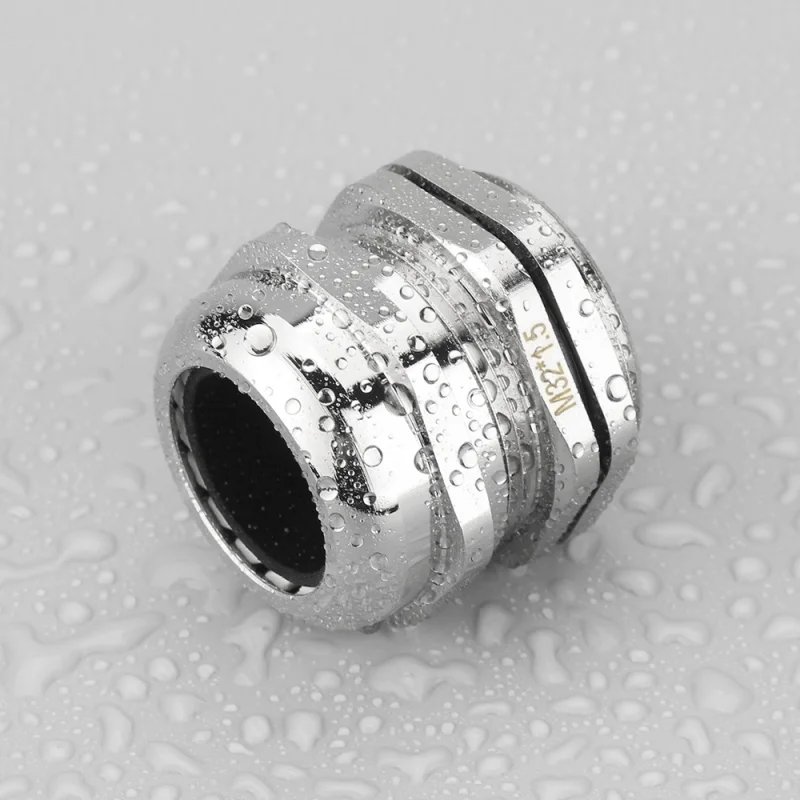

- Stainless steel waterproof connector M series M32A provides IP68-grade waterproof protection for power and signal wiring in harsh environments.
- It features nickel-plated brass and durable sealing rings, offering strong corrosion resistance and secure connectivity.
- Its large diameter and robust structure support high current or heavy-duty equipment applications
- Ideal for marine, outdoor, and power system wiring, the M32A connector ensures lasting safety and reliability.

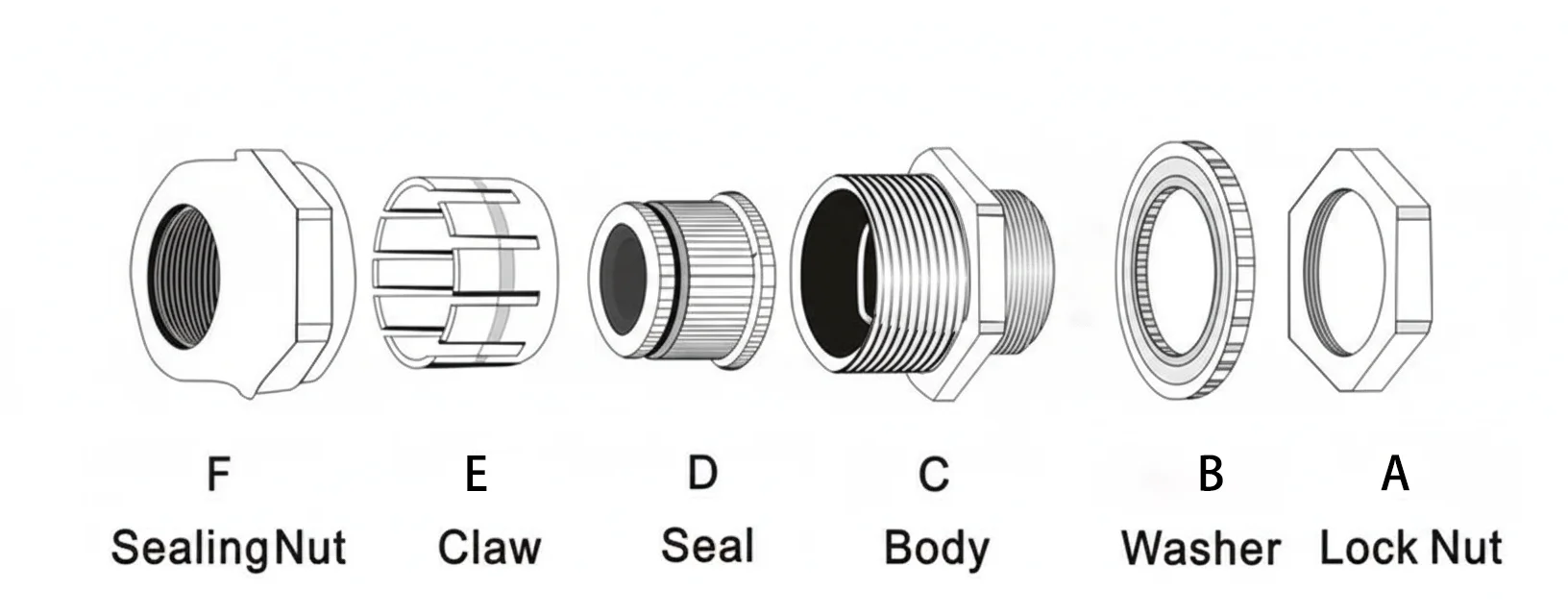

structural diagram
have high tensile strength, and are suitable for a variety of harsh environments. They can ensure the normal connection and transmission of cables in waterproof, dustproof, salt-proof, acid-alkali-resistant and various chemical solvent environments. With the expansion of the scope of application, waterproof Cable gland are widely used both indoors and outdoors. When laying cables, disconnected lines need to be reconnected. Traditional connectors have no waterproof function, high maintenance costs and insufficient safety.
With IP68 protection and high tensile strength, this connector ensures lasting performance, easy assembly, and enhanced safety in demanding conditions.
Choose M32A for critical wiring where durability and stable cable transmission are essential.
Product Description
The M32A Metal Cable Gland is a large-diameter cable sealing solution designed for secure cable entry, strain relief, and environmental protection in industrial and commercial electrical systems. As a professional manufacturer, supplier, and factory, we provide reliable cable glands for B2B buyers requiring stable quality and bulk supply.
This metal cable gland helps protect electrical enclosures from water, dust, oil, and other contaminants while firmly holding cables in place. Its precision claw and sealing structure provide strong cable grip, a wider cable range, and dependable sealing performance.
The M32A metal cable gland is widely used in industrial automation, outdoor equipment, electrical panels, machinery, power distribution systems, and commercial installations. It is suitable for industrial users, electrical contractors, distributors, and wholesalers seeking custom, OEM/ODM, and wholesale price solutions.
Key Features
- Large-diameter design for wider cable applications
- IP68-10 Bar sealing performance for harsh environments
- Corrosion-resistant metal body for long service life
- Secure “click” locking nut design for firm cable clamping
- Supports OEM/ODM customization from direct factory supply
Product Specifications
- Model: M32A Metal Cable Gland
- Thread Type: Metric, PG, G/PF, NPT available
- Material: Nickel-plated brass body, Nylon PA claw, NBR sealing insert and O-ring
- Protection & Temperature: IP68-10 Bar, -40℃ to 100℃, short-term up to 120℃
Product Specifications Table

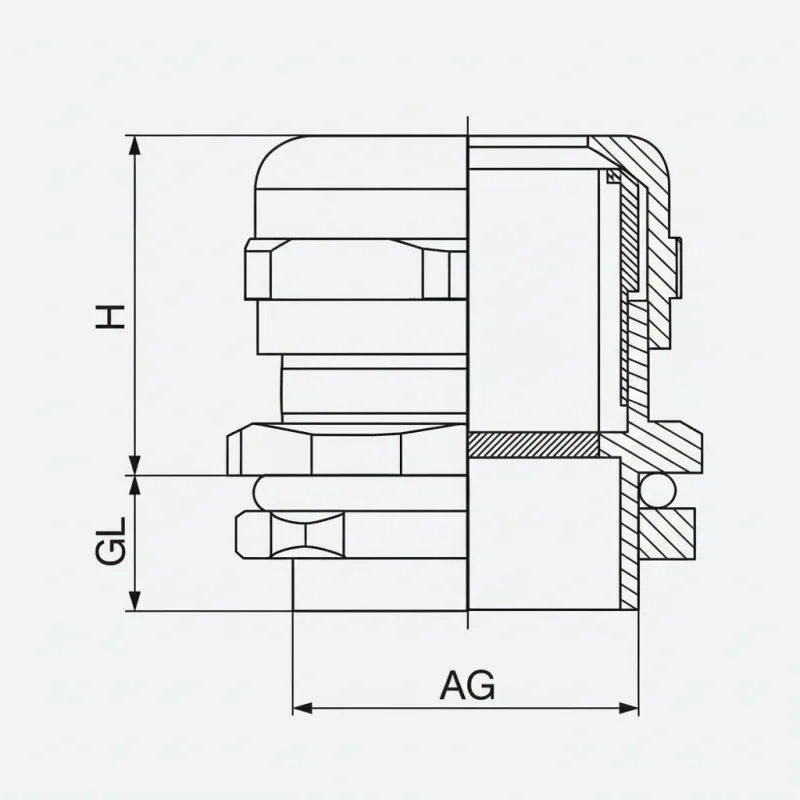

| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Mounting Hole Diameter(mm) | Thread length GL(mm) | Bonding length (mm) | Spanner Size (mm) |
| M14-NP | M14×1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 |
| M16-NP | M16×1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| M18-NP | M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| M20-NP | M20×1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| M22-NP | M22×1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| M24-NP | M24×1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 |
| M25-NP | M25×1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| M28-NP | M28×1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| M30-NP | M30×1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| M32-NP | M32×1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| M33-NP | M33×1.5 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| M36-NP | M36×1.5 | 25-18 | 36 | 36-36.2 | 10 | 31 | 40 |
| M37-NP | M37×1.5 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| M40-NP | M40×1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| M42-NP | M42×1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| M48-NP | M48×1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| M50-NP | M50×1.5 | 38-32 | 50 | 50-50.2 | 12 | 37 | 57/55 |
| M63-NP | M63×1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
FAQ
- Q1: Are you a metal cable gland manufacturer or supplier?
A: Yes, we are a professional manufacturer and supplier, offering direct factory supply for B2B buyers. - Q2: Do you support OEM/ODM customization for M32A metal cable glands?
A: Yes, we provide OEM/ODM customization, including thread type, size, material, and branding. - Q3: What applications is the M32A metal cable gland used for?
A: It is used in electrical panels, industrial machinery, outdoor equipment, automation systems, and power distribution projects. - Q4: Can distributors get wholesale pricing?
A: Yes, we offer competitive wholesale price options for distributors, wholesalers, and bulk orders. - Q5: Is the M32A metal cable gland suitable for harsh environments?
A: Yes, it is resistant to salt water, weak acid, alcohol, oil, grease, and common solvents.
