SD16 Series Aviation Connector

SD16 Series Aviation Connector features threaded connection, PA66/PA6 shell, PPS insulation to 260°C, gold-plated copper contacts, and supports welding. With over 500 insertions and a -25°C to 85°C range,

Запрос Цитировать

Характеристики товара

Connection method: threaded connection
Shell material: Thermoplastic PA66,PA6
Insulator: Thermoplastic PPS with high temperature resistance of 260°C
Contact material: copper(gold-plated)
Wiring method: Welding
Insertionfrequency: greater than 500 times
Temperature range: -25°℃to 85°℃

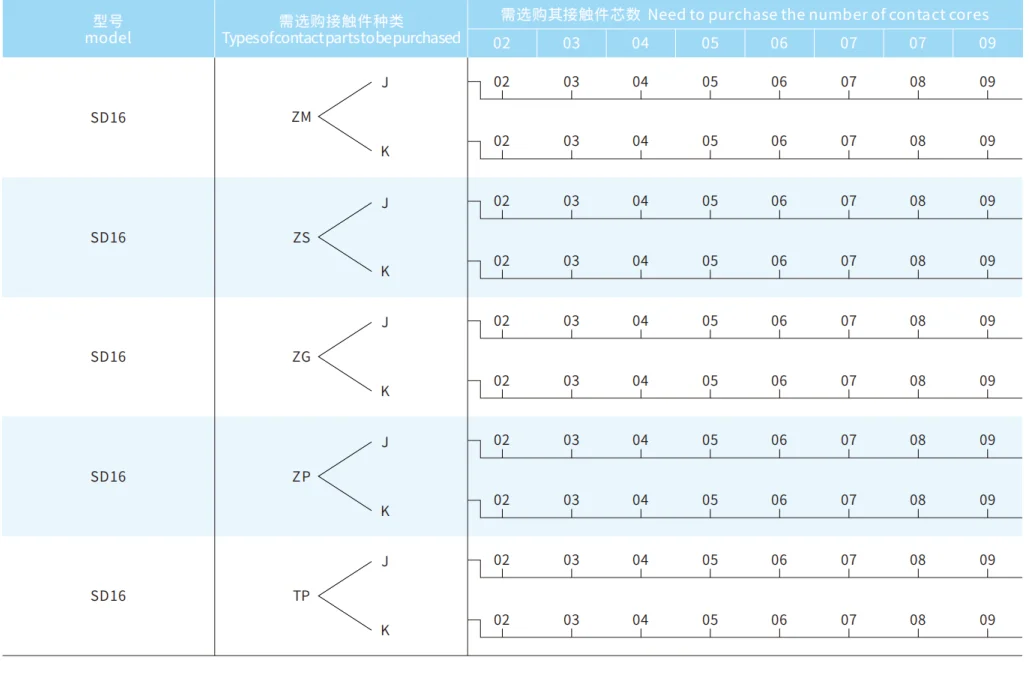

Modelimplication

Number of cores
Types of contact parts
Structural form of socket housing

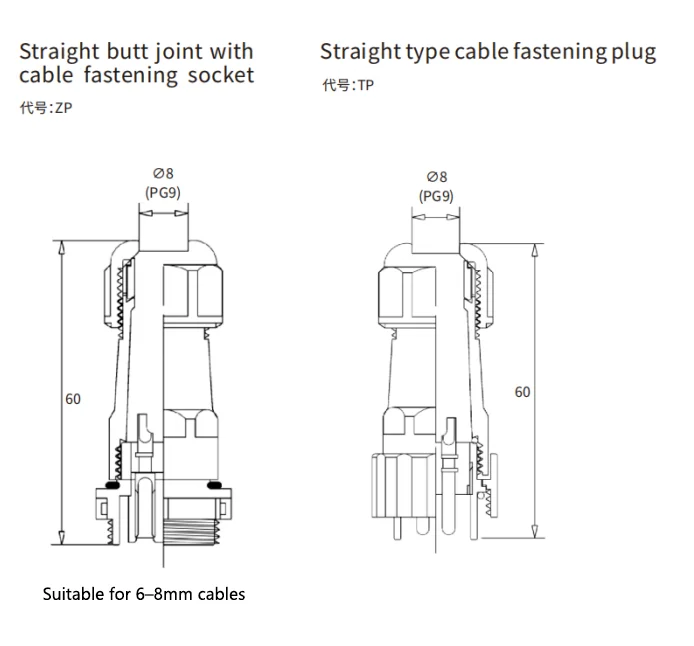

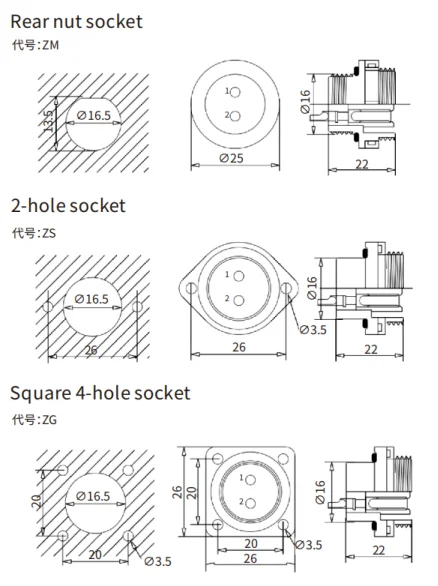

ZM)-Rear nut socket ZS)-2-hole socket ZG)-Square 4-holesocket ZP)-Straight buttjoint with cable fasteningsocket
plug
TP)-Straight type cable fastening plug
Socket and panel fiting diameter
Title code
