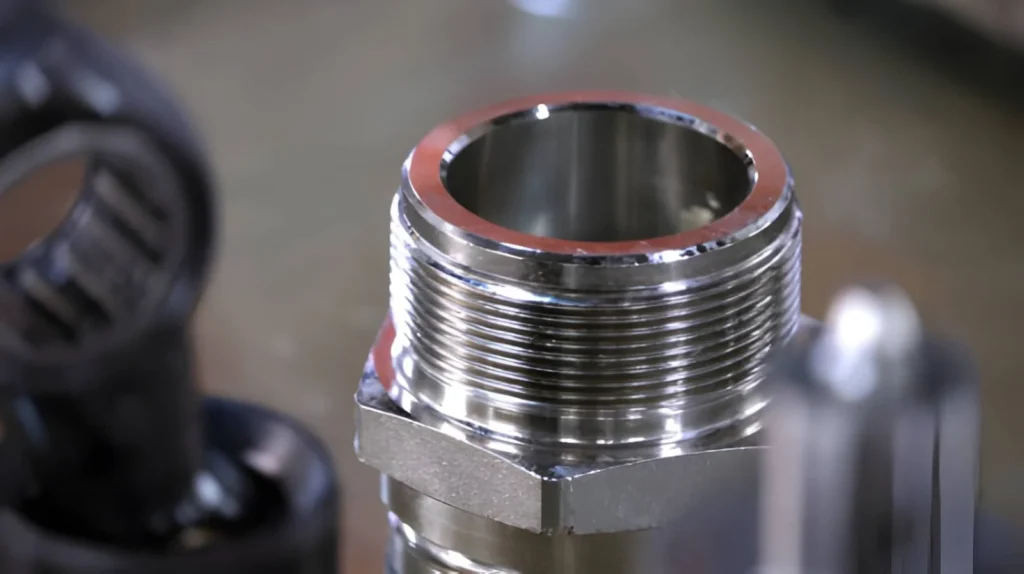

Brass Cable Gland Nickel-Plated IP68 Waterproof Industrial Grade
Table of Contents
Key Features & Benefits of Brass Cable Glands
Wilmall’s premium nickel-plated brass cable glands deliver superior durability, reliability, and protection for a wide range of industrial electrical applications.
| Feature | Benefit |
|---|---|
| Premium Nickel-Plated Brass | Enhanced corrosion resistance and long service life, ideal for harsh environments. |
| IP68 Waterproof Rating | Ensures complete dust-tight sealing and water immersion protection. |
| Strain Relief Design | Prevents cable damage and maintains secure connections under tension. |
| Wide Cable Range Compatibility | Supports various cable diameters for flexible installation options. |
| Flame-Retardant Materials | Meets high safety standards in hazardous and explosive atmospheres. |
| Multiple Thread Types | Available in Metric, PG, NPT, and G threads for diverse mounting requirements. |
| Armored and Unarmored Cable Compatible | Fits both armored and non-armored cables, simplifying inventory and use. |
| Easy to Install | User-friendly design with clear threading and sealing sequence minimizes downtime. |
This metal cable gland combines functionality with robust build quality, making it a preferred waterproof cable fitting for demanding industrial and hazardous area applications. The nickel plating not only enhances the gland’s resistance to corrosion but also improves overall electrical conductivity, crucial for grounding and safety. With its flame-retardant and IP68-rated features, the Wilmall brass cable gland ensures a reliable seal that protects electrical cable entry points against dust, moisture, and mechanical strain.
Product Overview & Description
Brass cable glands play a crucial role in securing and protecting cables where they enter electrical enclosures or machinery. They provide a reliable seal against dust, moisture, and mechanical strain, ensuring long-term safety and durability. Wilmall’s brass cable glands stand out for their robustness and precision engineering, offering consistent performance even in demanding environments.
Our premium nickel plated brass cable glands deliver excellent corrosion resistance, outperforming many plastic alternatives that can degrade over time. Compared to stainless steel, Wilmall’s brass options are often more cost-effective while maintaining high strength and durability. This combination of quality and price makes them a smart choice for a wide range of industrial and hazardous applications.
With Wilmall, you get metal cable glands engineered for easy installation and secure cable strain relief, adding value and peace of mind. Their superior waterproof rating ensures cables stay protected against water ingress, which plastic or lower-grade glands might fail to guarantee.
For projects that require robust connectivity, including cable entry in automation systems or hazardous area setups like Exd ratings, Wilmall’s brass glands offer unmatched reliability. If you need more specialized metal cable connectors, our aviation-grade power connectors can perfectly complement your setup.
Applications & Suitable Environments for Brass Cable Glands
Brass cable glands are ideal for a wide range of tough environments. In industrial machinery, their robust design ensures reliable cable entry and strain relief, maintaining safety and performance. They’re also perfect for hazardous or explosive areas—like Exd and Exe zones—due to their flame-retardant properties and secure sealing.
Marine and offshore setups benefit from the waterproof brass cord grip and corrosion resistance, making nickel-plated brass cable glands a trusted choice in wet or salty conditions. Electrical enclosures and automation systems also rely on these metal cable glands for precise cable management and IP68 waterproof protection.
For industrial cable connectors that demand durability and safety, Wilmall’s brass cable glands provide a reliable solution tailored to these challenging environments. For seamless integration in your electrical setups, consider combining these with related components such as our low voltage current transformers, designed for precision and durability.
Technical Specifications of Wilmall Brass Cable Glands
Wilmall’s brass cable glands are engineered to meet diverse industrial needs, combining versatility with durability.
| Specification | Details |
|---|---|
| Material | Premium nickel-plated brass for corrosion resistance and strength |
| Thread Types | Metric, PG, NPT, G (compatible with various cable entries) |
| Cable Diameter Range | From 3mm up to 50mm, covering a wide range of cable sizes |
| IP Rating | IP68 waterproof rating ensures protection against dust and water |
| Operating Temperature | -40°C to +100°C, suitable for harsh environments |
| Armored Cable Support | Suitable for both armored and unarmored cables |
| Flame-Retardant | Fire-resistant materials enhance safety in hazardous locations |
| Certifications | Compliant with IECEx, ATEX, and other international standards |
| Accessories | Locknuts, earth tags, reducers, shrouds available for secure fit |
This detailed specification pack guarantees your metal cable gland performs reliably, whether you need a waterproof brass cord grip or an armored cable gland brass variant. For precise size matching, Wilmall also provides a comprehensive range of accessories and complementary fittings.
Check out our detailed stainless steel cable gland M Series M37A for comparison if you require specialized corrosion resistance tailored to marine environments.
Available Models & Size Chart
Wilmall’s brass cable glands come in a versatile range of models tailored to fit your specific needs. Whether you’re looking for a metric brass cable gland, NPT brass cable gland, or PG brass cable gland, we’ve got you covered. Each variant supports a wide cable diameter range and offers different clamping types—perfect for armored and unarmored cables.
You can easily browse through our dropdown or grid selection by thread size and cable range to find the right match. Pricing tiers are clearly indicated, helping you choose the best option whether you’re buying single units or in bulk.
This structured size chart simplifies your selection process, ensuring you get the right fit for your industrial cable connector or waterproof cable fitting needs without hassle. For detailed specs and compatibility options, our listings provide all the technical clarity required to match your project demands.
Installation Guide & Tips for Brass Cable Glands
Installing a brass cable gland correctly ensures a secure, waterproof, and strain-relieved connection. Follow these steps for a smooth and reliable setup:
Stepwise Install Instructions
- Prepare the Cable: Strip the cable jacket carefully without damaging the inner wires or armoring.
- Select the Correct Gland Size: Choose a gland that fits your cable diameter within the specified cable range.
- Disassemble the Gland: Remove the nut, sealing ring, and clamping parts.
- Insert the Cable: Feed the cable through the gland components in the correct order.
- Fit the Gland Body: Screw the gland into the enclosure or panel with the right thread: Metric, PG, NPT, or G type.
- Tighten the Nut: Secure the clamping ring to provide strain relief and compression on the cable sheath.
- Check the Seal: Verify the rubber O-ring or sealing ring is properly seated to maintain the IP68 waterproof rating.
Torque Settings & Tools
- Use a calibrated torque wrench to tighten the gland according to manufacturer specs. Over-tightening can damage the gland or cable.
- Typical torque ranges are between 10 to 20 Nm, depending on thread size and gland model.
- Required tools include open-end wrenches for gland body and nut, cable strippers, and possibly pliers for armor wires.
Sealing Sequence
- Ensure the sealing ring is clean and undamaged.
- Assemble in the correct order: gland body, sealing ring, cable, clamping ring, and nut.
- Tighten progressively to avoid any gaps or misalignment, which can cause water ingress.
Common Pitfalls to Avoid
- Wrong gland size: too small can crush cables; too big compromises sealing.
- Not stripping cables properly: damages inner conductors or armor.
- Skipping strain relief: leads to cable movement and eventual failure.
- Cross-threading gland: damages threads causing sealing failure.
- Over-tightening: deforms the gland or cable insulation.
Following these tips will ensure your nickel-plated brass cable gland performs well in industrial and hazardous environments. For heavy-duty systems, consider pairing the gland with related accessories like locknuts and earth tags to boost safety and reliability.
For related robust industrial controls and connectors, check out Wilmall’s explosion-proof pendant control station and advanced capacitive proximity switches, designed for tough setups that require durable cable entry and control solutions.
Why Choose Wilmall Brass Cable Glands?
Wilmall brass cable glands offer a great quality-price ratio that makes them a top choice for many industries. Our nickel-plated brass cable glands combine durability and reliability, ensuring your cables stay protected under tough conditions. Here’s why Wilmall stands out:
| Feature | Wilmall Brass Cable Glands | Plastic/Low-Grade Brass Alternatives |
|---|---|---|
| Material Quality | Premium nickel-plated brass, corrosion-resistant | Prone to cracking and corrosion |
| Performance | High IP68 waterproof rating with excellent strain relief | Lower waterproof rating, less strain protection |
| Temperature Range | Wide temperature tolerance, ideal for harsh environments | Limited temperature range |
| Bulk Purchase Options | Flexible quantities with cost savings | Often no bulk discounts |
| Application Fit | Suitable for armored, unarmored, Exd areas | Limited compatibility |
| User Feedback | Positive testimonials on durability and ease of install | Mixed reviews, especially on longevity |
The performance boost over plastic or low-grade brass glands makes Wilmall a smart investment whether you need solutions for industrial cable connectors, hazardous area cable glands, or waterproof cable fittings. Plus, our bulk options help reduce costs on large projects without sacrificing quality.
If you’re looking for a dependable metal cable gland that won’t let you down, Wilmall is the way to go—outperforming the competition in price and reliability.
Explore more about our range and why precision and robustness matter in products like pendant control stations for seamless automation integration.
Accessories & Related Products
To get the most from your brass cable gland, Wilmall offers a full range of accessories designed for easy installation and extended durability. These include locknuts to secure glands firmly in place, earth tags for grounding and safety compliance, and reducers/adaptors that help accommodate different cable sizes or thread types.
We also supply protective shrouds to shield your wiring from environmental risks, plus matching metal cable connectors and fittings that maintain the same high-quality nickel-plated brass construction. These related products ensure your setup stays robust and waterproof with the same IP68 rating you expect from your brass cord grip.
Using these accessories together means you can rely on a tightly sealed, strain-relieved assembly suitable for industrial cables, armored cables, and those in hazardous locations. For seamless integration, check out our complementary offerings like the industrial remote control transmitter and related durable connectors, which keep your entire electrical system secure and efficient.
