M18 Cable Gland Manufacturer for OEM/ODM Buyers
스테인리스 스틸 방수 커넥터 M18 시리즈는 강력한 인장 강도와 IP68 보호 기능을 제공하여 케이블을 안전하게 설치할 수 있으며, 넓은 클램핑 범위로 유연한 배선을 지원하고 부식, 먼지 및 화학 물질에 대한 내성을 보장합니다.
- Product Certification: IP68、ISO9001、TUV
- Materials: Brass with nickel plated for body, Nylon PA for plastic claw
- ODM/OEM: Customizable stainless steel 304/316L material
제품 이점 소개
- 스테인리스 스틸 방수 커넥터 M 시리즈 M18은 높은 인장 강도와 내식성을 제공합니다.

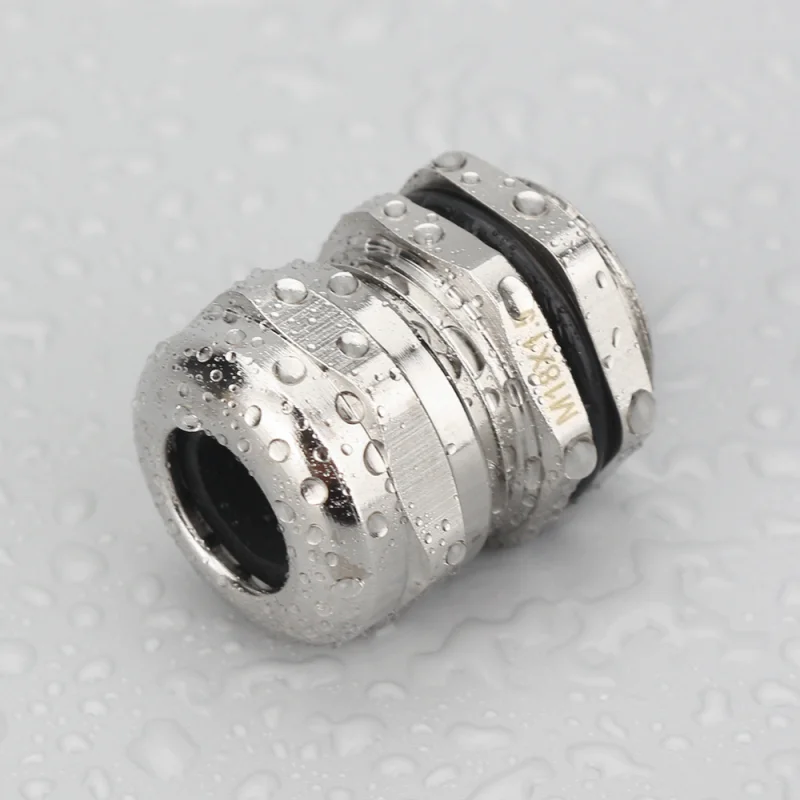

- IP68 보호 기능을 갖추고 있어 방수, 방진 및 염분 방지 애플리케이션에 이상적입니다.
- 씰링 링은 NBR로 제작되어 열악한 환경에서도 누출을 방지할 수 있습니다.
- 다양한 설치를 위해 미터법, PG, G(PF), NPT 나사산 유형과 호환됩니다.
구조 다이어그램
이 스테인리스 스틸 방수 커넥터 M 시리즈 M18은 내식성과 방수 기능이 중요한 산업, 실외 및 해양 환경에 적합합니다. 내구성이 뛰어난 스테인리스 스틸 본체와 안전한 밀봉으로 열악한 환경에서도 안정적인 성능을 제공하며 안전성, 수명, 간편한 설치를 보장합니다. 자동화, 로봇 공학 및 중장비 애플리케이션에 이상적입니다.
Meta Description
M18 cable gland manufacturer in China offers IP68 brass glands at wholesale price, with custom OEM/ODM service for suppliers and distributors.
Length: 144 characters
Product Details

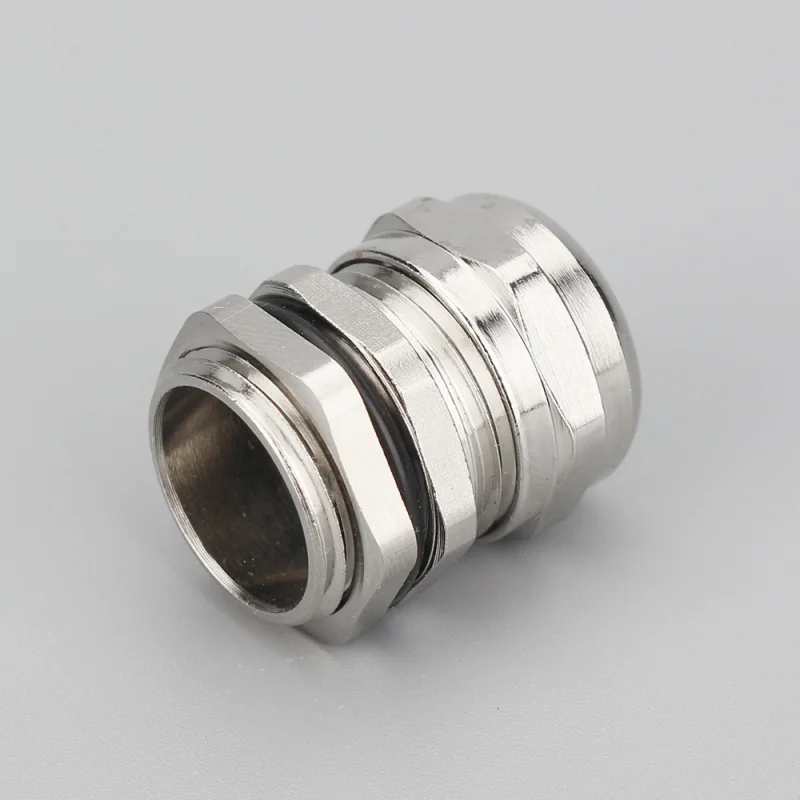

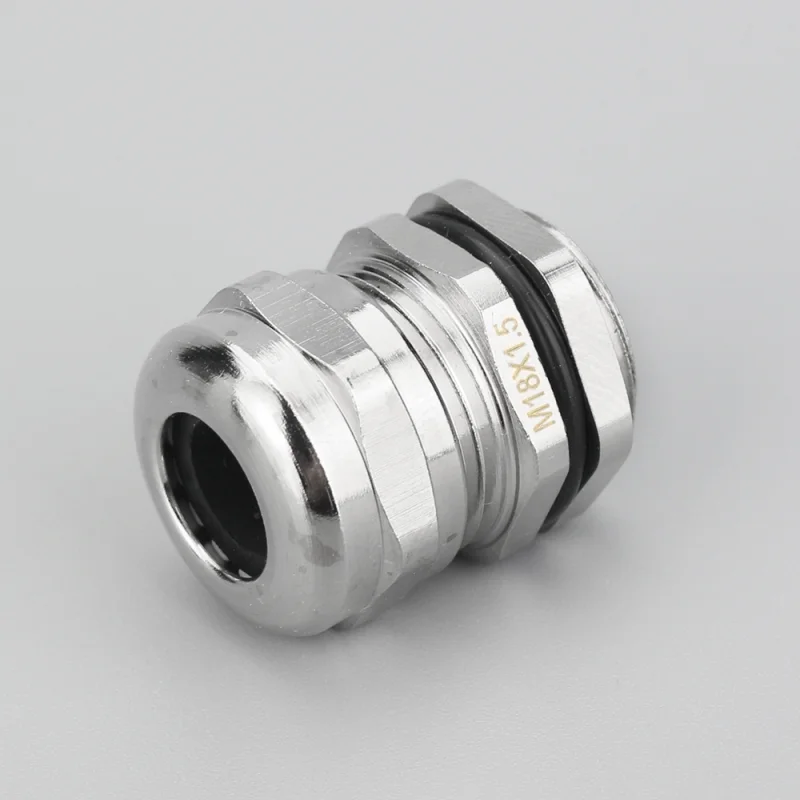

The M18 nickel-plated brass cable gland is a waterproof cable entry fitting designed to secure cables, provide strain relief, and protect electrical connections from water, dust, oil, grease, and other common contaminants. As a professional cable gland manufacturer, WILMALL supplies reliable M18 cable glands for industrial and commercial electrical applications.
This M18 cable gland is widely used in electrical enclosures, control panels, junction boxes, automation equipment, industrial machinery, outdoor power systems, and commercial wiring projects. It is suitable for industrial users, commercial users, electrical contractors, wholesalers, and distributors looking for stable quality and long-term supply.
The product features a nickel-plated brass body, Nylon PA plastic claw, and NBR sealing insert and O-sealing ring. Its excellent claw and seal design holds cables firmly across a wider cable range, while the sealing nut produces a clear “click” sound and can be reopened for convenient installation and maintenance.
For B2B procurement, WILMALL supports factory supply, bulk purchase, wholesale price, customization, OEM/ODM, private label, and white label services, helping buyers source dependable cable gland products directly from a China manufacturer.
Product Parameters
- Thread Type: Metric thread, with PG, G(PF), and NPT thread options available.
- Material: Nickel-plated brass body, Nylon PA plastic claw, NBR sealing insert and O-sealing ring.
- Protection Degree: IP68-10 Bar waterproof and dustproof sealing performance.
- Working Temperature: -40℃ to 100℃ in static state, with instantaneous heat resistance up to 120℃.
제품 사양 표
| 모델 | Thread AG | 케이블 범위(mm) | 나사산 O.D(mm) | 장착 구멍 지름(mm) | 나사산 길이 GL(mm) | 본딩 길이 (mm) | 스패너 크기 (mm) |
| M14-NP | M14×1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 |
| M16-NP | M16×1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| M18-NP | M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| M20-NP | M20×1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| M22-NP | M22×1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| M24-NP | M24×1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 |
| M25-NP | M25×1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| M28-NP | M28×1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| M30-NP | M30×1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| M32-NP | M32×1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| M33-NP | M33×1.5 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| M36-NP | M36×1.5 | 25-18 | 36 | 36-36.2 | 10 | 31 | 40 |
| M37-NP | M37×1.5 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| M40-NP | M40×1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| M42-NP | M42×1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| M48-NP | M48×1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| M50-NP | M50×1.5 | 38-32 | 50 | 50-50.2 | 12 | 37 | 57/55 |
| M63-NP | M63×1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
자주 묻는 질문
- 1. Are you a cable gland manufacturer or supplier?
Yes. WILMALL is a professional cable gland manufacturer and supplier in China, providing M18 cable glands for industrial users, electrical contractors, wholesalers, and distributors.
- 2. What is the M18 cable gland used for?
The M18 cable gland is used to seal, fasten, and protect cables entering electrical enclosures, control panels, machinery, junction boxes, and outdoor electrical systems.
- 3. Can I order M18 cable glands at wholesale price?
Yes. WILMALL offers wholesale price and bulk purchase options for B2B buyers, including distributors, wholesalers, electrical contractors, and commercial users.
- 4. Do you provide custom OEM/ODM cable glands?
Yes. Customization, OEM/ODM, private label, and white label services are available for companies that need branded or project-specific M18 cable gland solutions.
- 5. What protection level does this M18 cable gland provide?
This M18 cable gland provides IP68-10 Bar protection, helping protect cable entries from dust, water, oil, grease, weak acid, alcohol, salt water, and common solvents.
