Method of use: the metal cable waterproof connector is the product of form a complete set of the cable, connector cable can be lock, the other end can access devices on the box body, also can choose thread access accordingl to the import and export for the internal thread of electric devices.
Product advantage introduction

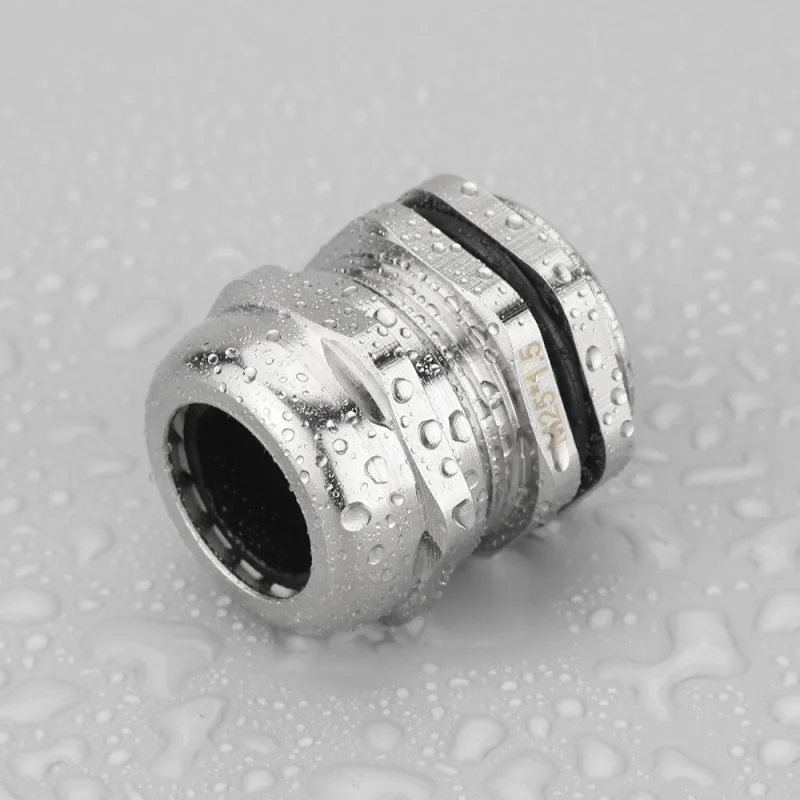

- Stainless steel waterproof connector M series M25A provides IP68-grade waterproof protection for power and signal wiring in harsh environments.
- It features nickel-plated brass and durable sealing rings, offering strong corrosion resistance and secure connectivity.
- Its large diameter and robust structure support high current or heavy-duty equipment applications
- Ideal for marine, outdoor, and power system wiring, the M25A connector ensures lasting safety and reliability.

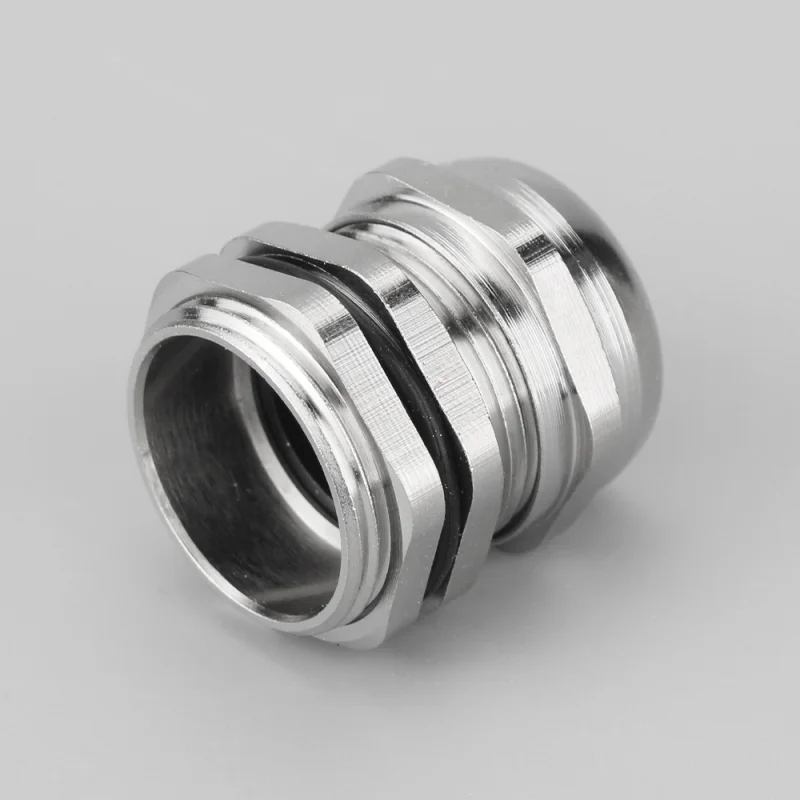

structural diagram
have high tensile strength, and are suitable for a variety of harsh environments. They can ensure the normal connection and transmission of cables in waterproof, dustproof, salt-proof, acid-alkali-resistant and various chemical solvent environments. With the expansion of the scope of application, waterproof Cable gland are widely used both indoors and outdoors.
Product Specifications Table
| Model | Thread AG | Cable Range (mm) | Thread O.D (mm) | Mounting Hole Diameter(mm) | Thread length GL(mm) | Bonding length (mm) | Spanner Size (mm) |
| M14-NP | M14×1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 |
| M16-NP | M16×1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| M18-NP | M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| M20-NP | M20×1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| M22-NP | M22×1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| M24-NP | M24×1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 |
| M25-NP | M25×1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| M28-NP | M28×1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| M30-NP | M30×1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| M32-NP | M32×1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| M33-NP | M33×1.5 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| M36-NP | M36×1.5 | 25-18 | 36 | 36-36.2 | 10 | 31 | 40 |
| M37-NP | M37×1.5 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| M40-NP | M40×1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| M42-NP | M42×1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| M48-NP | M48×1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| M50-NP | M50×1.5 | 38-32 | 50 | 50-50.2 | 12 | 37 | 57/55 |
| M63-NP | M63×1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
