8 Button Crane Pendant XAC-A8913 Supplier
XAC-A8913 pendant control station features 8 mechanically interlocked buttons and a 40mm ZA2-B854 emergency stop for reliable crane and hoist operation.
- Standards: IEC947-5-1, EN60947-5-1, IEC337-1, NFC63-146, VDE0660-200
- Shock resistance: 100g conforming to IEC68-2-27
- Electric chock protectin: Class Il conforming to IEC 536 and NF C 20-030

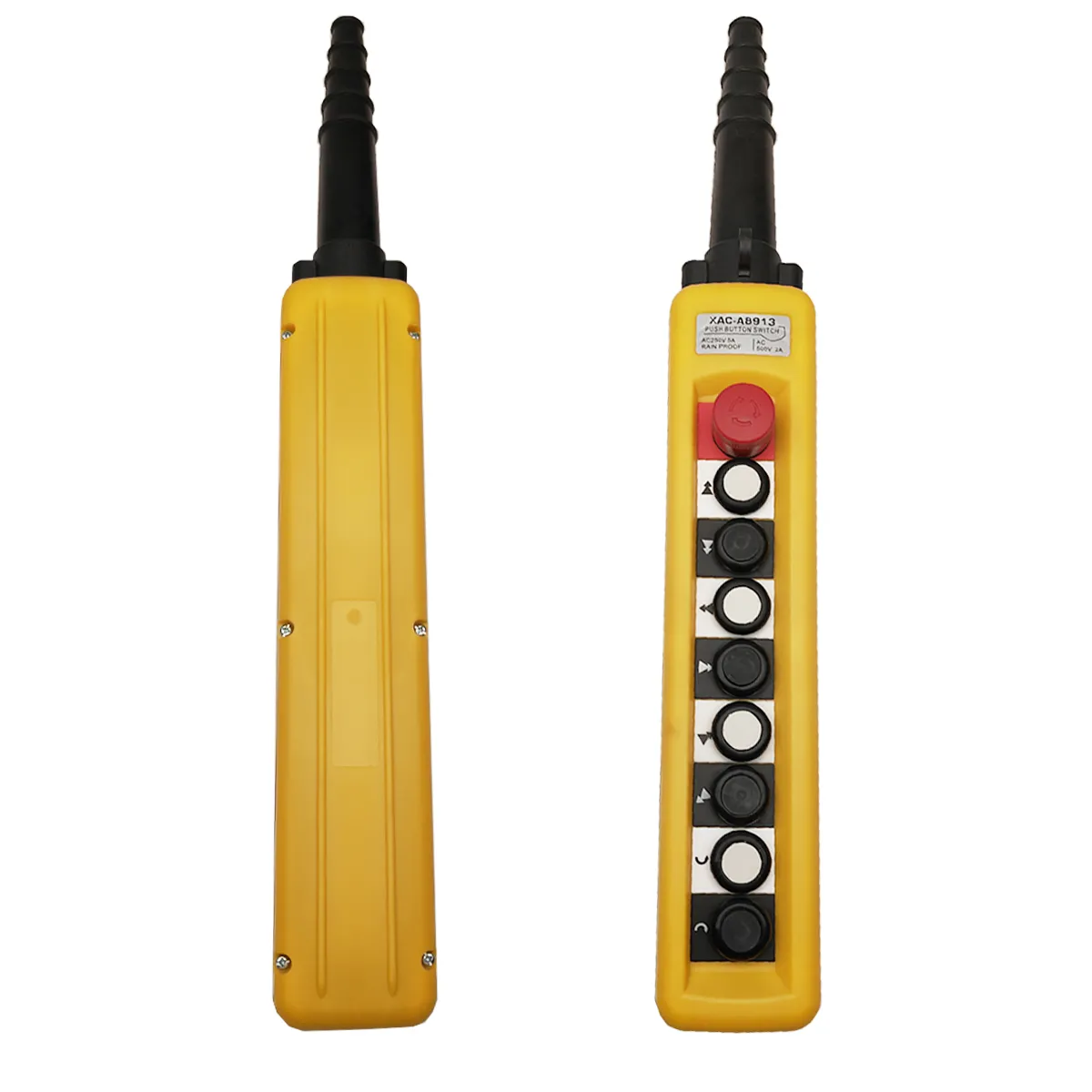

The XAC-A8913 Pendant Control Station is a high-performance industrial control device designed for hoists, cranes, and machinery requiring safe, reliable single-speed control.
It features 8 mechanically interlocked push buttons and one trigger action latching emergency stop (ZA2-B854) with a 40mm mushroom head operator, ensuring precise and secure control even in demanding environments.
Constructed from double-insulated yellow polypropylene, this control pendant is highly visible, lightweight, and durable. Its IP65 waterproof and dustproof rating makes it ideal for indoor and outdoor industrial use.
Complying with international standards such as IEC947-5-1, EN60947-5-1, and VDE0660, it guarantees electrical safety and mechanical reliability, with a mechanical lifespan exceeding 1 million operations.
Perfect for OEM manufacturers, automation systems, and lifting equipment suppliers, the XAC-A8913 ensures safety, comfort, and long-term performance in every operation.
Electrical schematic
Meta Description
Buy XAC-A8913 8 Button Crane Pendant from a trusted manufacturer, supplier, and OEM/ODM factory. IP65 pendant station for cranes and hoists.
Product Details
The XAC-A8913 8 Button Crane Pendant is an industrial pendant control station designed for safe and reliable single-speed control of cranes, hoists, conveyors, and other machinery. Built for industrial users, commercial users, electrical contractors, and distributors, it features 8 mechanically interlocked push buttons plus a Ø40mm ZA2-B854 latching emergency stop for precise operation and improved operator safety. It is widely used in lifting systems, assembly lines, automation panels, OEM motor control systems, and heavy-duty manufacturing equipment.
For B2B procurement, this 8 Button Crane Pendant is a strong choice for suppliers, manufacturers, wholesalers, distributors, and factories seeking custom or OEM/ODM control solutions at a competitive wholesale price. The yellow double-insulated polypropylene enclosure offers high visibility and durability, while the IP65 protection rating helps resist dust and water in demanding indoor and outdoor environments. With Class II electric shock protection, 10A thermal current, 600V rated insulation voltage, and mechanical durability over 1 million cycles, the XAC-A8913 delivers stable long-term performance for industrial control applications.
Product Features
8 mechanically interlocked push buttons for safe operation
Equipped with Ø40mm ZA2-B854 emergency stop, trigger action latching
IP65-rated for dust and water resistance
Durable yellow polypropylene enclosure, double insulated
Designed for cranes, hoists, and automation control systems
Technical Specifications
| Specification | Details |
|---|---|
| Standards | IEC947-5-1, EN60947-5-1, IEC337-1, NFC63-146, VDE0660 |
| Approvals | NEMKO, UL Listed A600-Q600, CSA A600-Q600 |
| Shock Resistance | 100g (IEC68-2-27) |
| Electric Shock Protection | Class II (IEC536, NFC 20-030) |
| Degree of Protection | IP65 (IEC 539), IP657 (NF C20-010) |
| Mechanical Durability | 1 million cycles |
| Enclosure | Double-insulated polypropylene, yellow |
| Thermal Current (Ith) | 10A |
| Rated Insulation Voltage (Ui) | 600V (pollution degree 3) |
| Impulse Withstand Voltage (Uimp) | 6kV (IEC947-1) |
| Operation Type | N/C positive opening operation |
| Terminal Capacity | 0.5–2.5mm² screw and cable clamp terminals |
| Emergency Stop | Ø40mm ZA2-B854, trigger latching, positive opening |
Product Parameter
Model: XAC-A8913
Button Configuration: 8 mechanically interlocked push buttons + Ø40mm emergency stop
Protection Rating: IP65, Class II electric shock protection
Electrical Rating: 10A thermal current, 600V rated insulation voltage, 6kV impulse withstand voltage
Material & Durability: Double-insulated yellow polypropylene enclosure, mechanical life over 1 million cycles
Applications
The XAC-A8913 control pendant is ideal for industrial and automation control environments.
Common applications include:
Crane and hoist control for lifting operations
Conveyor and assembly line machinery
Industrial automation panels and OEM motor control systems
Heavy-duty manufacturing and equipment control stations
FAQ
1. What is the XAC-A8913 8 Button Crane Pendant used for?
The XAC-A8913 8 Button Crane Pendant is used for safe single-speed control of cranes, hoists, conveyors, and industrial machinery. It is suitable for industrial users, commercial users, and electrical contractors who need reliable pendant control in lifting and automation systems.
2. Does the XAC-A8913 8 Button Crane Pendant include an emergency stop?
Yes. This 8 Button Crane Pendant is equipped with a Ø40mm ZA2-B854 trigger-action latching emergency stop, along with 8 mechanically interlocked buttons, helping improve operational safety in crane and hoist control.
3. Is this 8 Button Crane Pendant suitable for OEM/ODM, custom, or factory supply?
Yes. The XAC-A8913 is suitable for OEM/ODM projects, custom requirements, factory sourcing, wholesale supply, and distributor channels. The product is positioned for OEM manufacturers, automation systems, and lifting equipment suppliers.
4. Where can distributors and wholesalers apply the XAC-A8913 8 Button Crane Pendant?
Distributors, wholesalers, and contractors can use this 8 Button Crane Pendant in crane and hoist systems, conveyor lines, assembly machinery, industrial automation panels, and heavy-duty manufacturing equipment.
5. Why is the XAC-A8913 a good choice for B2B buyers looking for wholesale price advantages?
The XAC-A8913 combines IP65 protection, a double-insulated polypropylene housing, 10A thermal current, 600V insulation voltage, and over 1 million mechanical cycle, making it a practical option for B2B buyers comparing long-term value, durability, and wholesale price.
