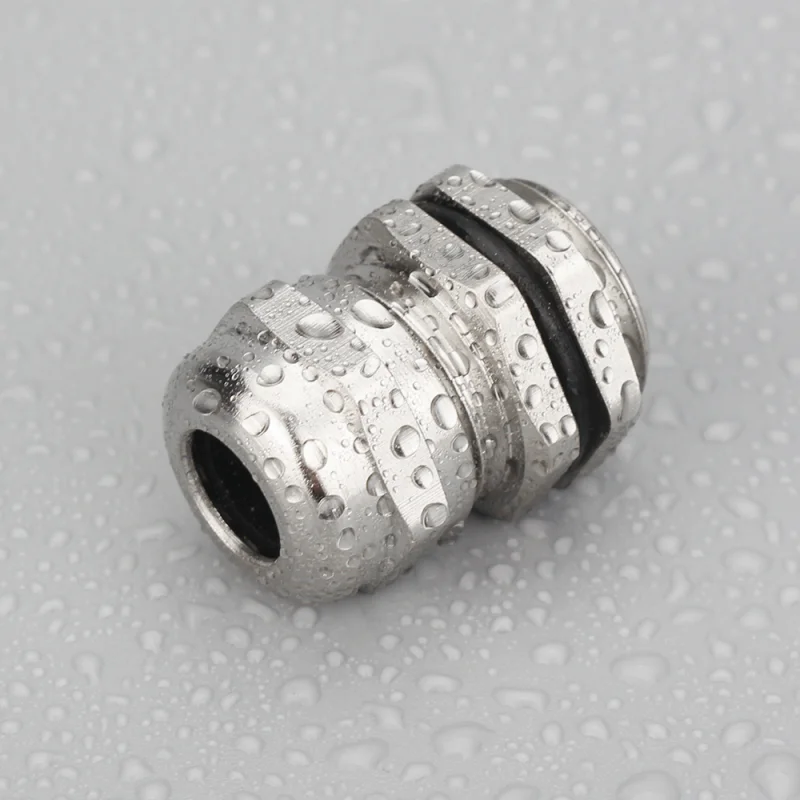

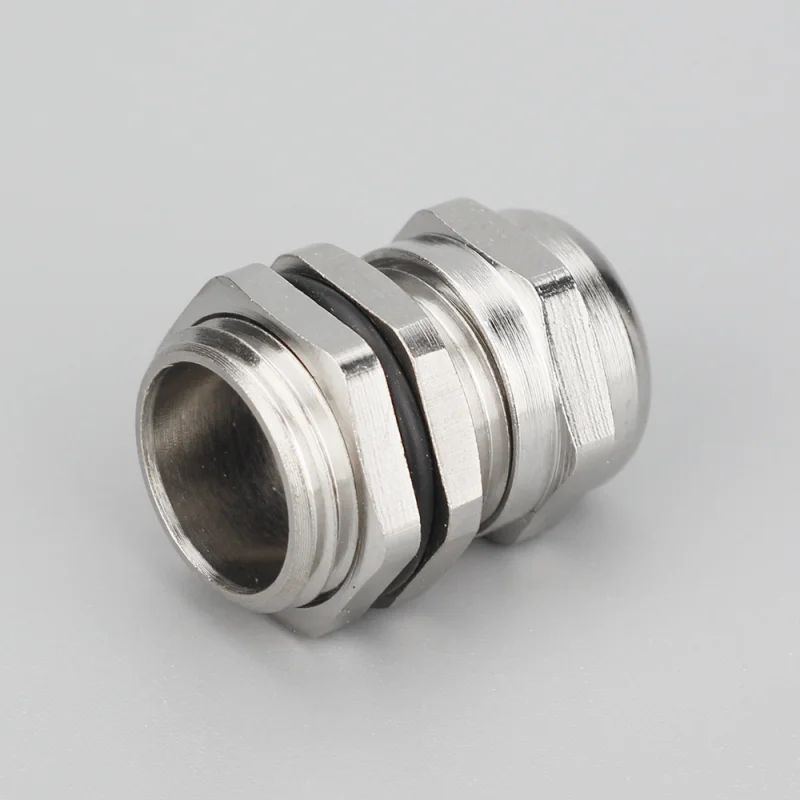

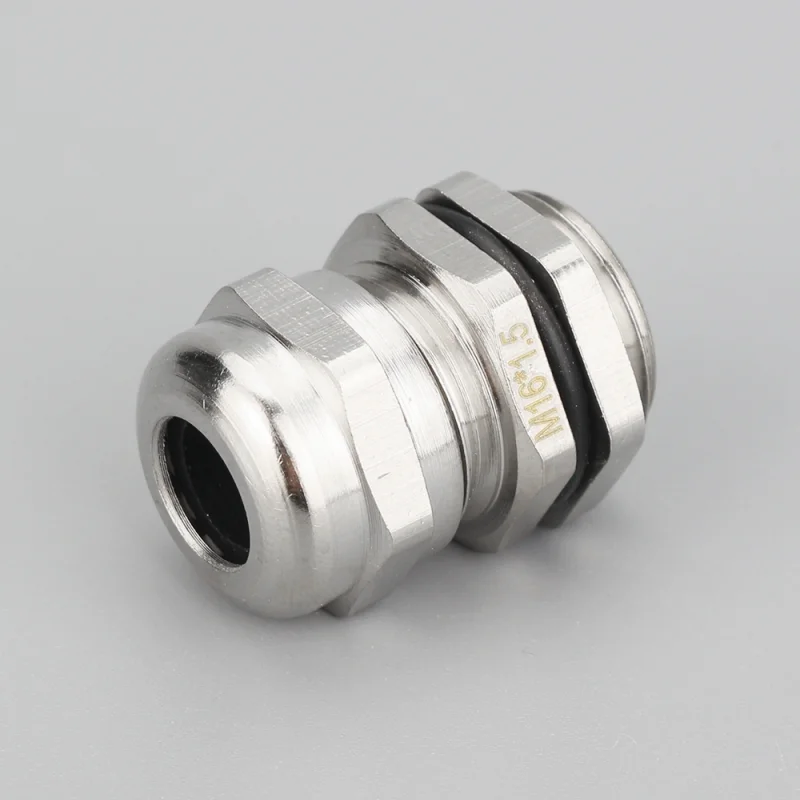

M16 Cable Gland – NBR Seal, IP68, Brass Body, Metric Thread
Stainless steel waterproof connector M series M16 is perfect for outdoor, industrial, and marine use. It offers IP68 protection, strong corrosion resistance, and reliable sealing for safe, long-lasting electrical connections.
Interested in this product?
Please contact our sales team for the latest pricing, lead time, and technical consultation.
製品の優位性紹介
- Stainless steel waterproof connector M series M16 features premium materials for maximum durability and corrosion resistance.
- It supports multiple thread types including Metric, PG, and NPT threads for flexible installations.
- The sealing ring, made from NBR, delivers top-level IP68 protection against water and dust ingression.
- Reliable performance is maintained even in extreme temperatures from -40°C to 100°C, with short-term up to 120°C.
- This connector is ideal for cable management in industrial, outdoor, and chemical-rich environments.
構造図
This stainless steel waterproof connector M series M16 is suitable for industrial, outdoor, and marine environments where corrosion resistance and water protection are critical. Its durable stainless steel body and secure sealing provide reliable performance in harsh conditions, ensuring safety, longevity, and easy installation. Ideal for automation, robotics, and heavy machinery applications.
製品仕様表
| モデル | スレッドAG | ケーブル範囲 (mm) | ネジ径 (mm) | 取付穴径(mm) | ネジ長さ GL(mm) | ボンディング長 (mm） | スパナサイズ (mm） |
| M14-NP | M14×1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 |
| M16-NP | M16×1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| M18-NP | M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| M20-NP | M20×1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| M22-NP | M22×1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| M24-NP | M24×1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 |
| M25-NP | M25×1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| M28-NP | M28×1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| M30-NP | M30×1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| M32-NP | M32×1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| M33-NP | M33×1.5 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| M36-NP | M36×1.5 | 25-18 | 36 | 36-36.2 | 10 | 31 | 40 |
| M37-NP | M37×1.5 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| M40-NP | M40×1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| M42-NP | M42×1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| M48-NP | M48×1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| M50-NP | M50×1.5 | 38-32 | 50 | 50-50.2 | 12 | 37 | 57/55 |
| M63-NP | M63×1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
